energy efficiency rating
  • Counter balance systems reduces rattle.
  • Ease of operation.
  • Circular ventilation – both sashes opening.
Timber Double Hung sizes

For custom sizes, please consult your Valley Windows representative.

Features and Specifications:

  • Mortice & Tenon joints to head, jamb & stiles – glued and fitted with zinc coated screws using the latest European technology.
  • 168mm x 45mm or optional 168mm x 65mm Merbau sills.
  • 140mm x 38mm jambs, mullions and transoms.
  • Solid timber sections – no finger joins or veneers.
  • Keyed sash locks.
  • Superior weather seals around sash rebates and mid rail.
  • Aluminium or optional timber insect screens to the external of the double hung windows.
  • Bull nose, federation or lambs tongue sash horns to internal or external.
  • Heavier timber sections provides increased structural strength, stability and aesthetic beauty.
  • Sash compression seals prevent air and water infiltration.

Timber:

materials imagematerials image

Timber Double Hung Window Features

Joinery Features

Timber Double Hung sizes
Mortice and Tenon Joints
Mortice & Tenon joints to head, jamb & stiles – glued and fitted with zinc-coated screws using the latest European technology.
Timber Double Hung sizes

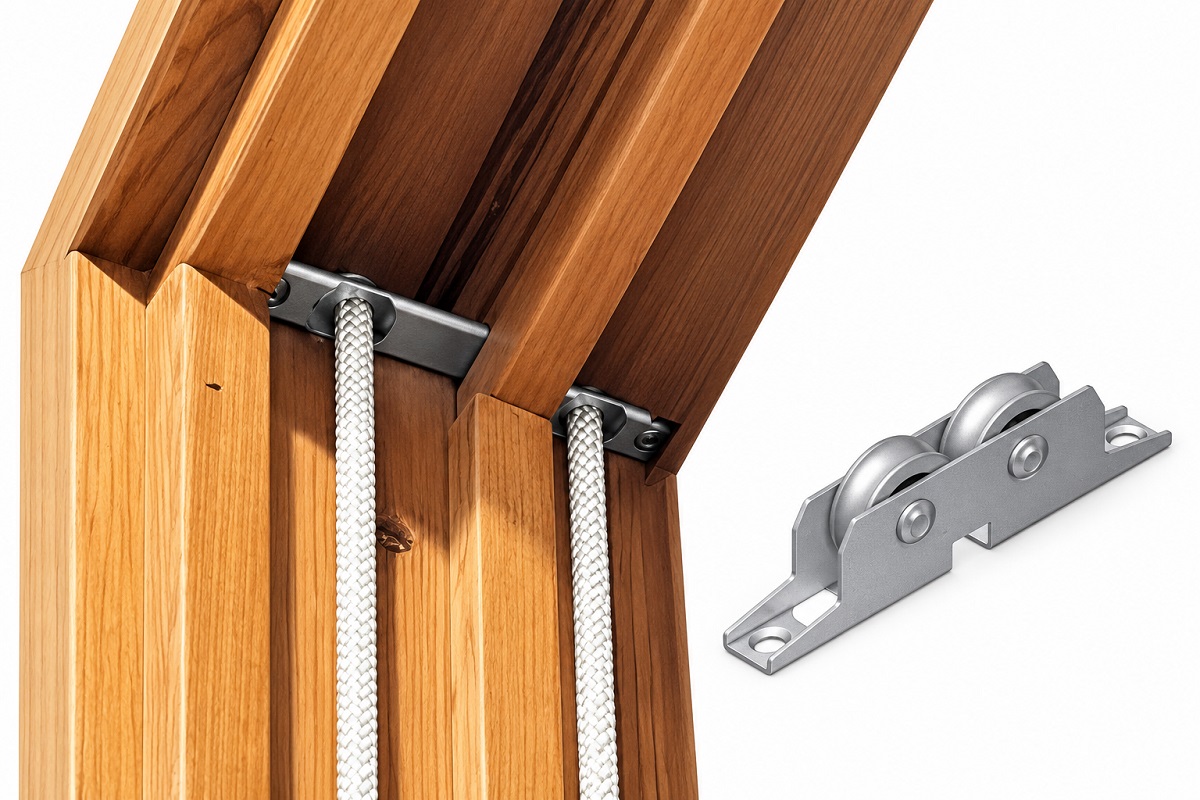

Counter Balanced Sash System
Dual Mammoth roller and rope counter balanced double hung system as standard.
Timber Double Hung sizes

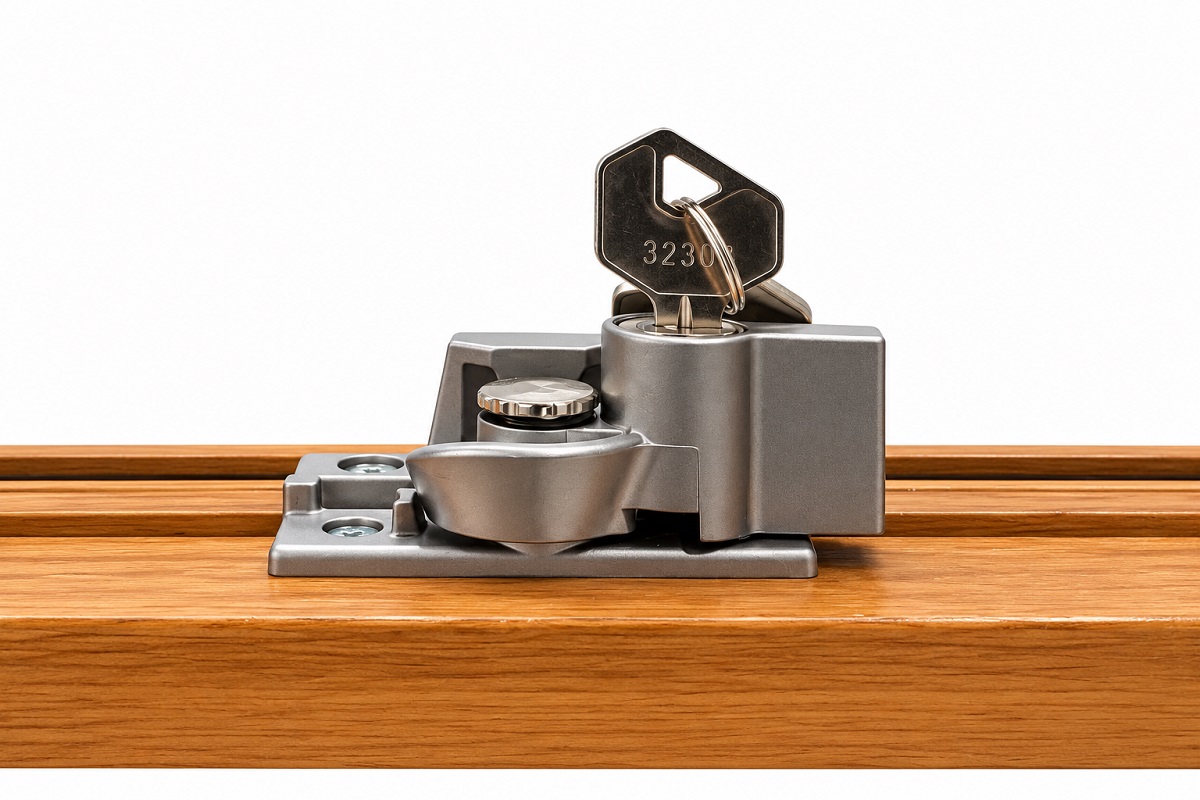

Lockable Sash Catch
Lockable sash catch as standard available in silver, white and black.
Timber Double Hung sizes

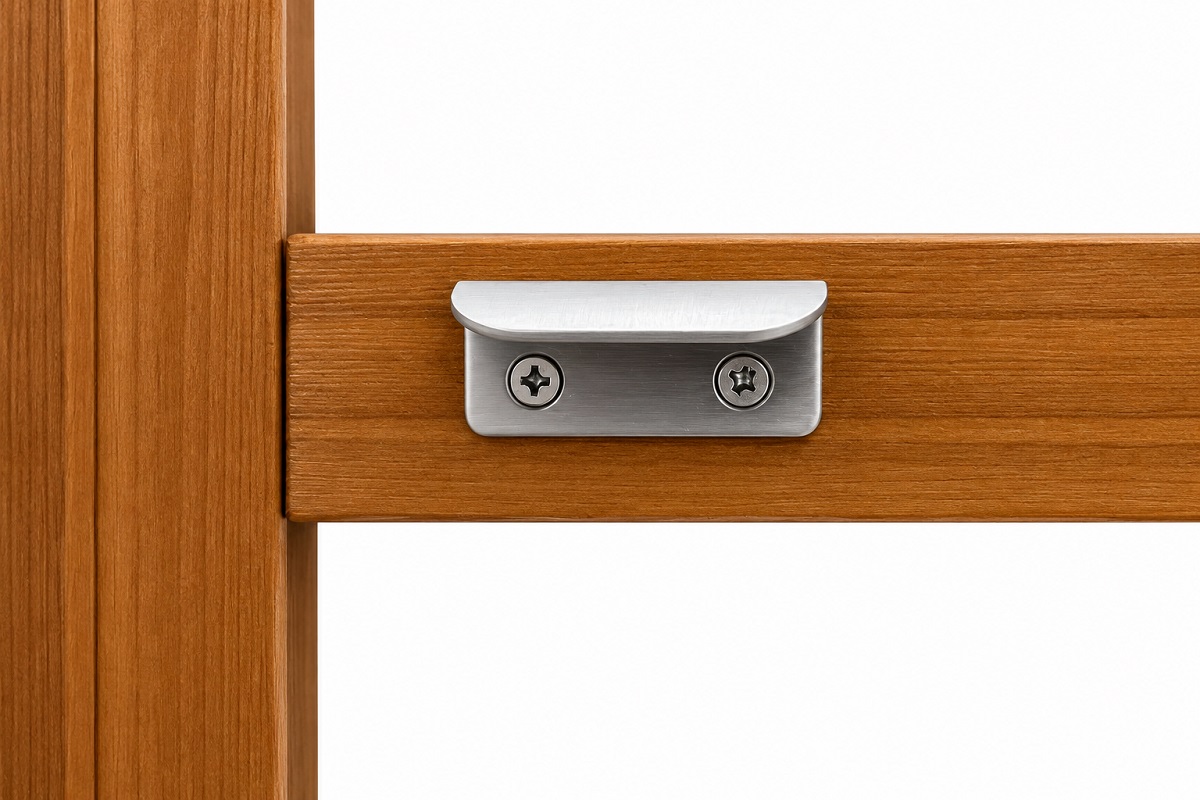

Sash Lift
Sash Lifts as standard available in silver, white and black.
Timber Double Hung sizes

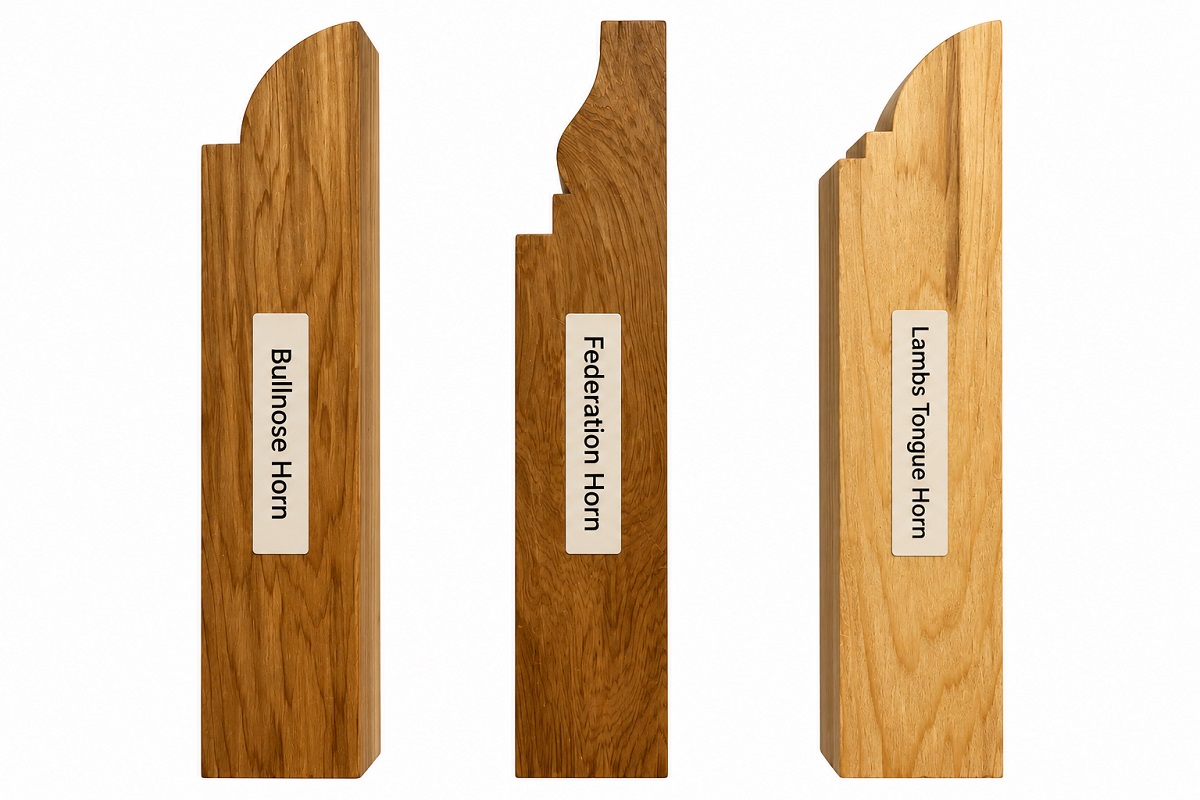

Decorative Horns To Sashes
Optional decorative horns to sashes available - Bullnose, Federation and Lambs Tongue.
Timber Double Hung sizes

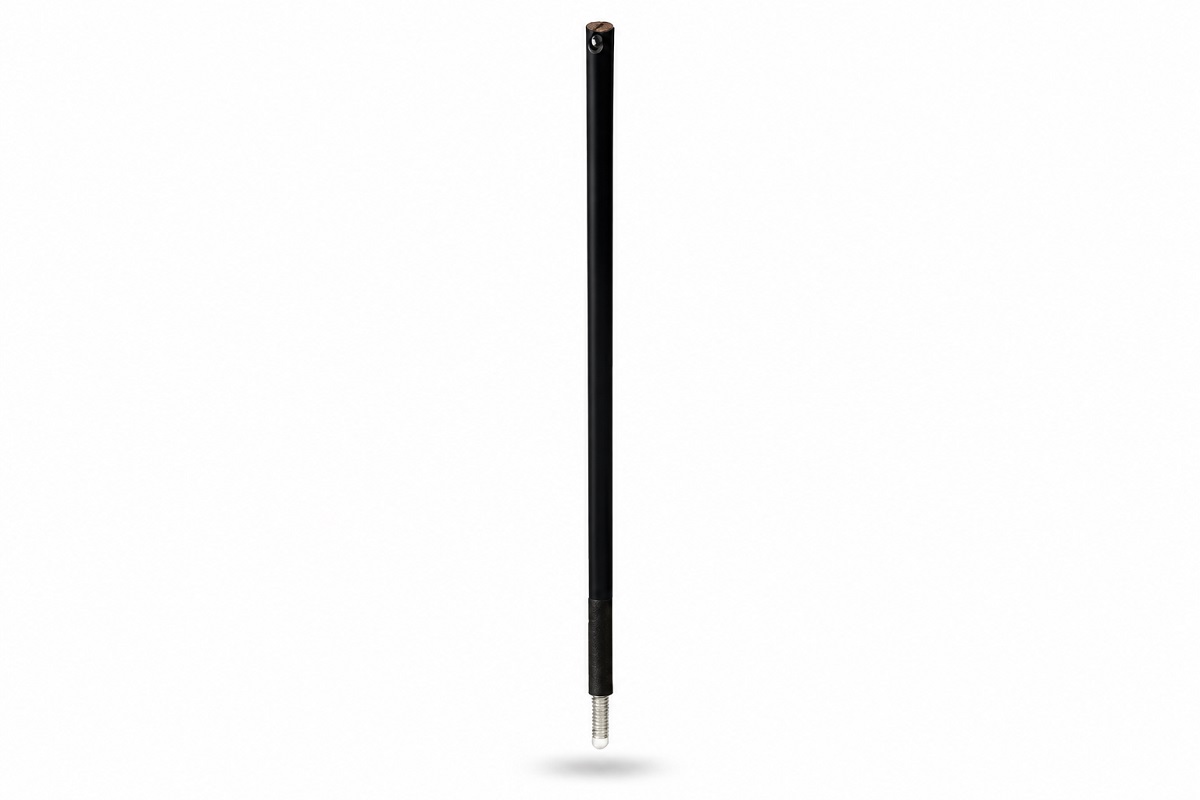

Optional Spring Balance System
Optional spring balance system can be installed in place of counter balance system, white and black available.
Timber Double Hung sizes

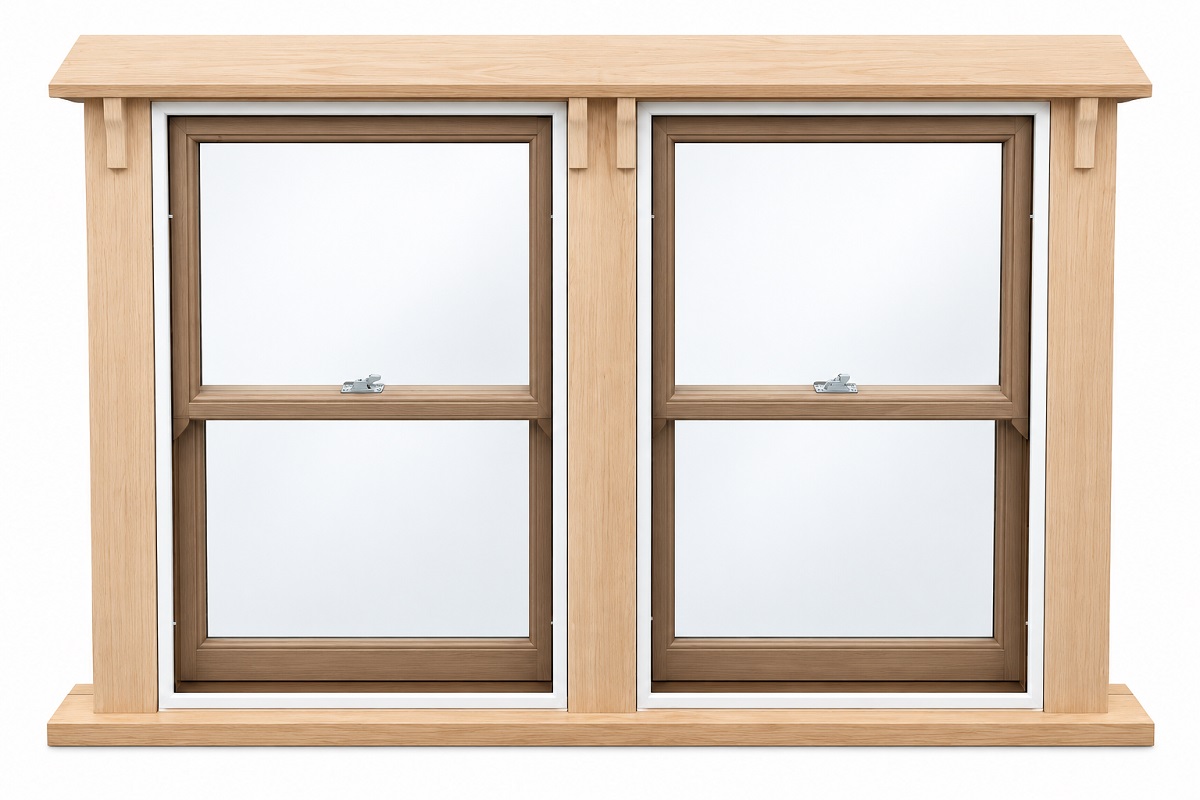

Optional Boxed Mullions and Jambs Decorative
Federation-style timber double hung windows with traditional sash horns and boxed mullions, custom bespoke window designs available.
Timber Double Hung sizes

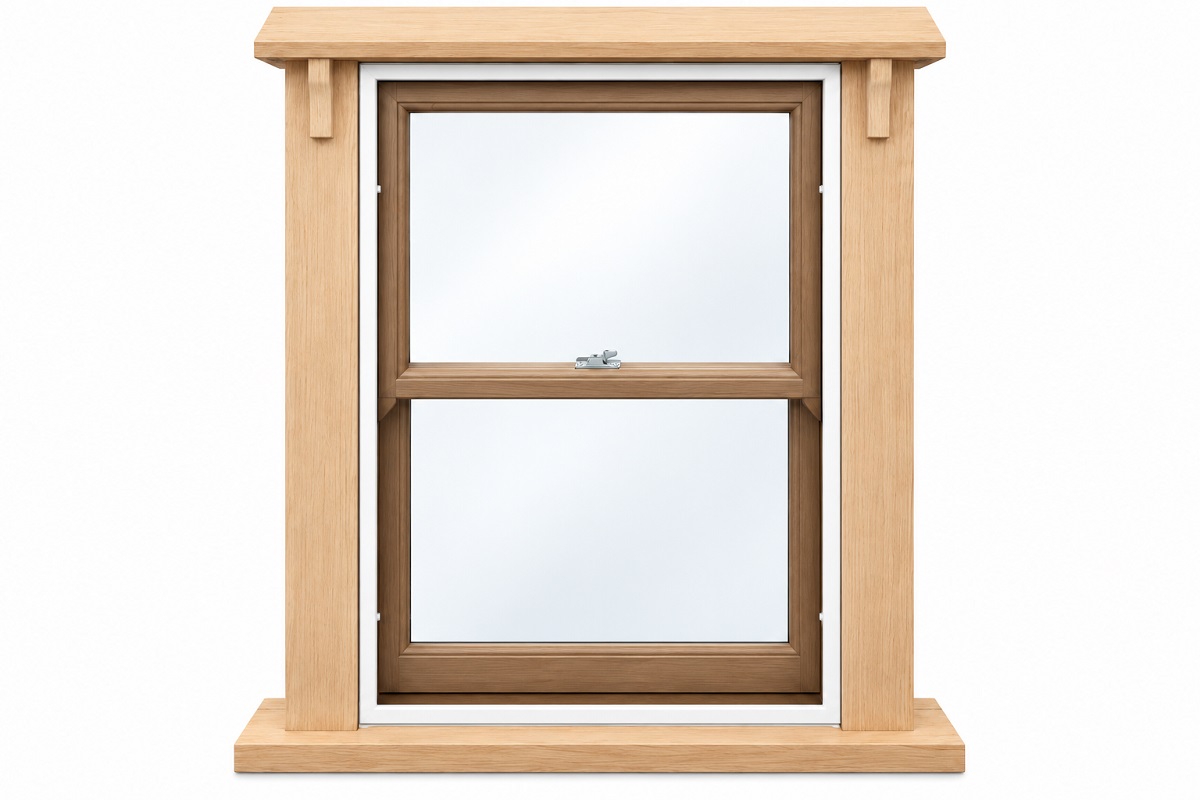

Aluminium Insect Screen
Aluminium Insect Screen with option of fibreglass or stainless steel mesh.
Timber Double Hung sizes
Timber Insect Screen
Timber Insect Screen with option of fibreglass or stainless steel mesh.
Timber Double Hung sizes
External Individual Pane Colonial Bar
Optional individual pane colonial bar - external view.
Timber Double Hung sizes
Internal Individual Pane Colonial Bar
Optional individual pane colonial bar - internal view.
Timber Double Hung sizes
External Single Pane Stick On Colonial Bar
Optional single pane stick on colonial bar - external view.
