Aluminium Stacker Door – CS Range

Experience the ultimate in open-plan living with our versatile, new CS Range Stacker Door. Designed to seamlessly connect your indoor and outdoor spaces, this door system maximises natural light and provides expansive, unobstructed views. The Stacker Door’s innovative design allows for wide openings, perfect for entertaining and creating a sense of spaciousness.

Engineered to meet Australian standards, including AS 2047 for air and water infiltration, our CS Range Stacker Doors are built for durability and performance in diverse climates. Personalise your doors with a wide selection of glazing options, colours, and finishes to perfectly complement your home’s aesthetic and enhance its energy efficiency.

Choose from multiple panel configurations to suit your specific needs, creating a flexible and stylish solution that transforms your living environment.

Max Product Height

3050mm*

Max Product Width

12000mm*

Max Panel Width

2400mm*

Glazing Capacity

4mm - 24.76mm

Wind Rating

N1 - N3

Air Infiltration

0.5 L/s.m²

Water Resistance

300 Pa

* Specific size limitations may apply. Please discuss with your Valley Windows Consultant.

Product Sheet

Technical Details

Features and Specifications:

Expansive Openings: Designed to create large, seamless transitions between indoor and outdoor spaces, maximising natural light and views.
Flexible Panel Configurations: Available in multiple stacking panel arrangements to suit diverse architectural styles and opening requirements.
High-Performance Glazing Options: Wide selection of glazing types to enhance energy efficiency, noise reduction, and security. Glazing adheres to AS 1288 Glass in Buildings for safety and quality.
Robust and Durable Construction: Engineered with a strong frame and track system to handle large panels and ensure smooth, reliable operation.
Smooth Roller System: High-quality rollers for effortless and quiet sliding action.
Secure Multi-Point Locking: Enhanced security with multi-point locking mechanisms for peace of mind.
Weather Resistance: Designed to meet Australian standards, including AS 2047 for air and water infiltration, ensuring optimal performance in all conditions.
Customisable Finishes: Durable powder-coated frames available in a wide range of colours and textures to complement your home’s aesthetic.
Concealed Fixings: Clean, streamlined appearance with concealed fixings for a modern look and easy maintenance.
Tailored Solutions: Manufactured to meet specific site conditions and project requirements.
Seamless Integration: Designed to integrate flawlessly with other Valley Windows products for a cohesive design.

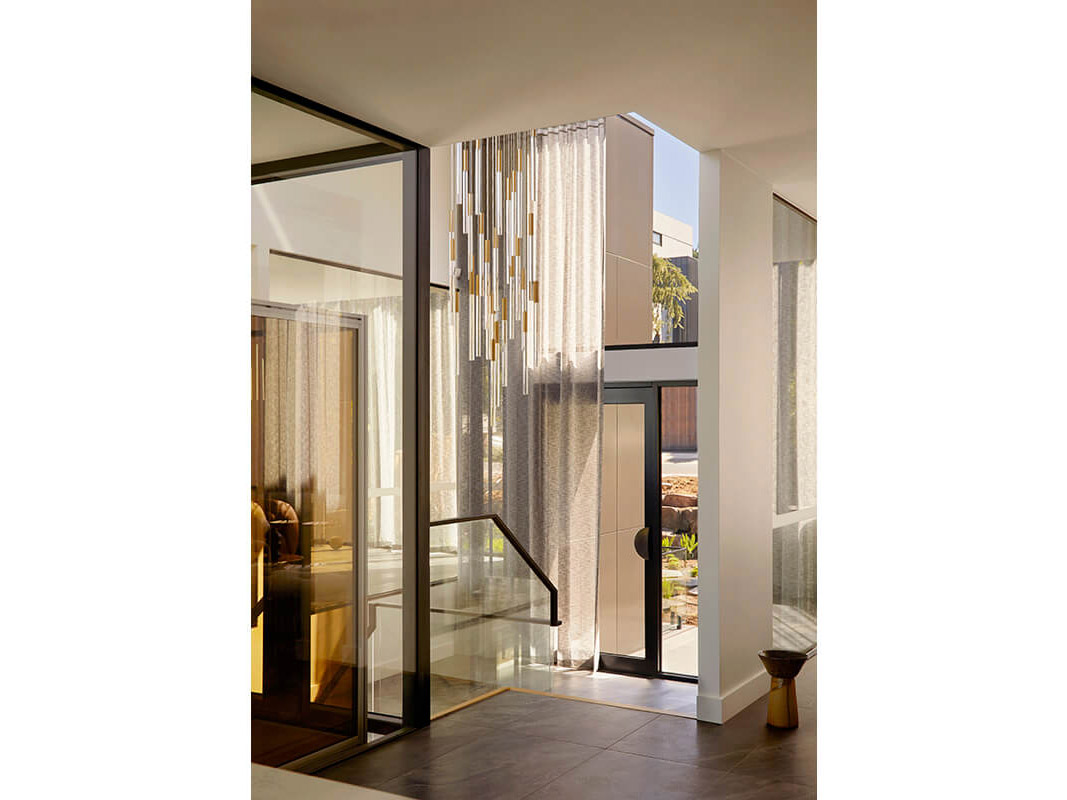

As featured in Our Englehart Home Project.
As featured in Our AHR Builders House Project.

Aluminium:

Aluminium Stacker Door CS Range Product Features

Product Features

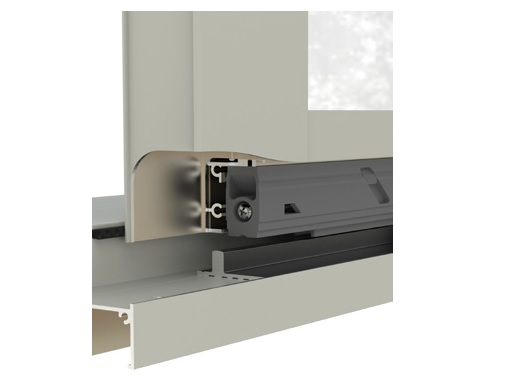

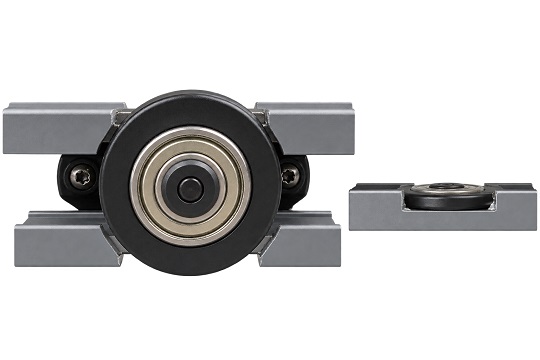

Double-Axle Adjustable Rollers

Two double-axle Adjustable Rollers with stainless steel bearings and acetal tyres support each panel.

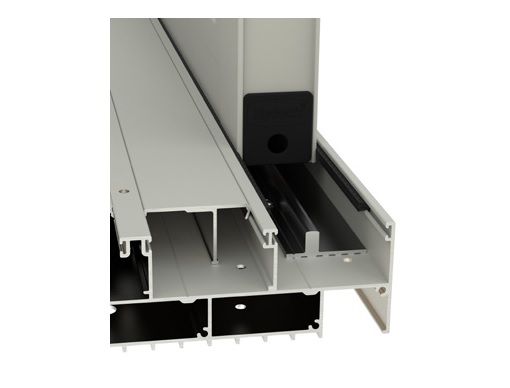

Replaceable Sill Track

A replaceable, chevron-profiled Sill Track is anodised for strength and durability.

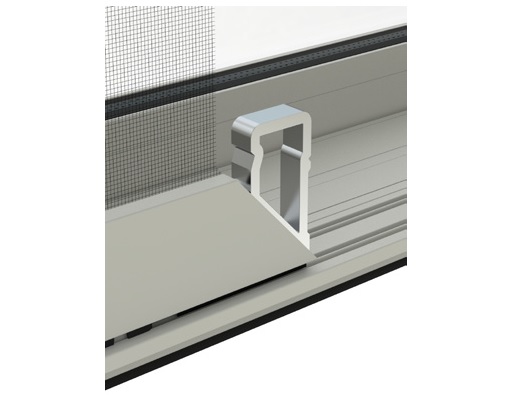

Panel Stops

Stainless Steel and Rubber Panel Stops ensures no damage to the frame when the panel is opened.

Extruded Flyscreens

Standard inclusion Extruded Flyscreens with various mesh options feature a hidden Corner Stake.

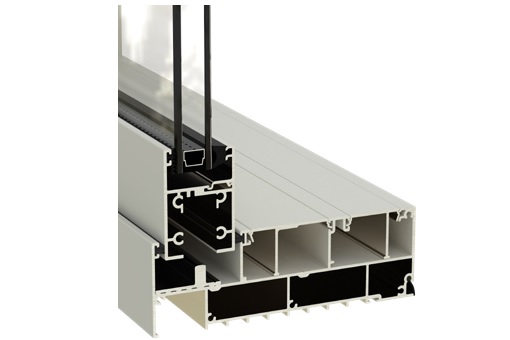

Insulated Glass Units

IGU standard specification is Grade A Safety Toughened Low-e Double Glazing (Argon Fill).

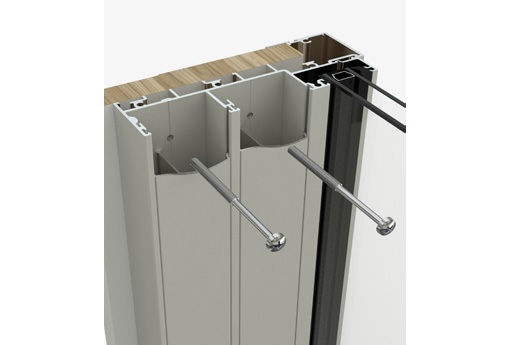

Concealed Fixing Pocket

Concealed Fixing Pocket allows the window to be secured via the temporary removal of a product infill.

Hardware Options

Lockwood™ Architectural Handle

Lockwood™ Architectural Handle features an instile key lock with snib and is available in black, white and satin chrome.

Lockwood™ D-Pull Handle

Lockwood™ D-Pull Handle features a classic design with comfort hold and a keylock and snib. Available in black, white and silver.

Lockwood™ Slimline Handle

Lockwood™ Slimline Handle features a contemporary design with clean lines a keylock and snib. Available in black, white and silver.

Flyscreen Door Latch

Flyscreen Door features a black latch.

Reveal Type

Primed Timber Reveal

A pre-primed in-line timber reveal for ease of installation is ready for painting. Architrave supplied by others.

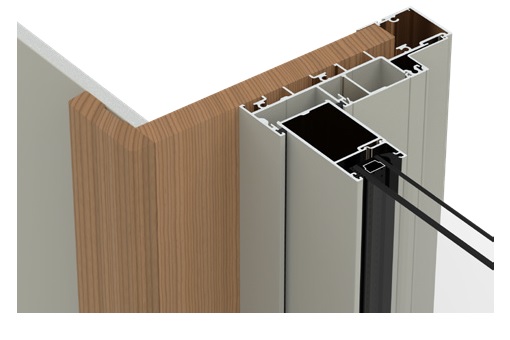

Hardwood Reveal

Select grade hardwood in-line timber reveal for ease of installation is ready to varnish. Architrave supplied by others.

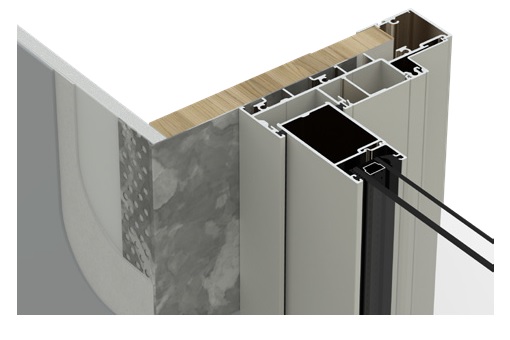

Plaster Reveal Offset

Common in modern housing construction products are fitted with a 1.6mm spacer to aid installation of the EzyReveal™ system.

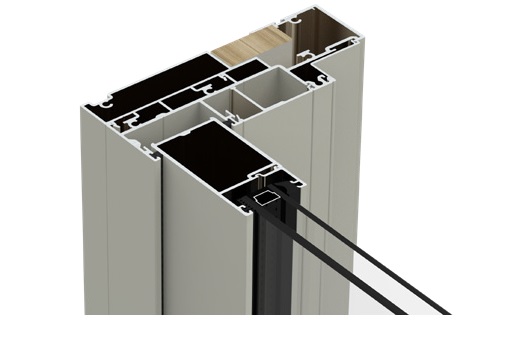

Reveal Equaliser

A versatile solution which provides a powder coated finish to the full height o f the internal surface of the frame with concealed fixing pocket.
