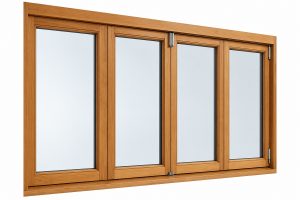

Timber Bi-fold Window

  • Timber Bifold Window
  • Timber Bi-fold Window
  • Timber Bi-fold Window

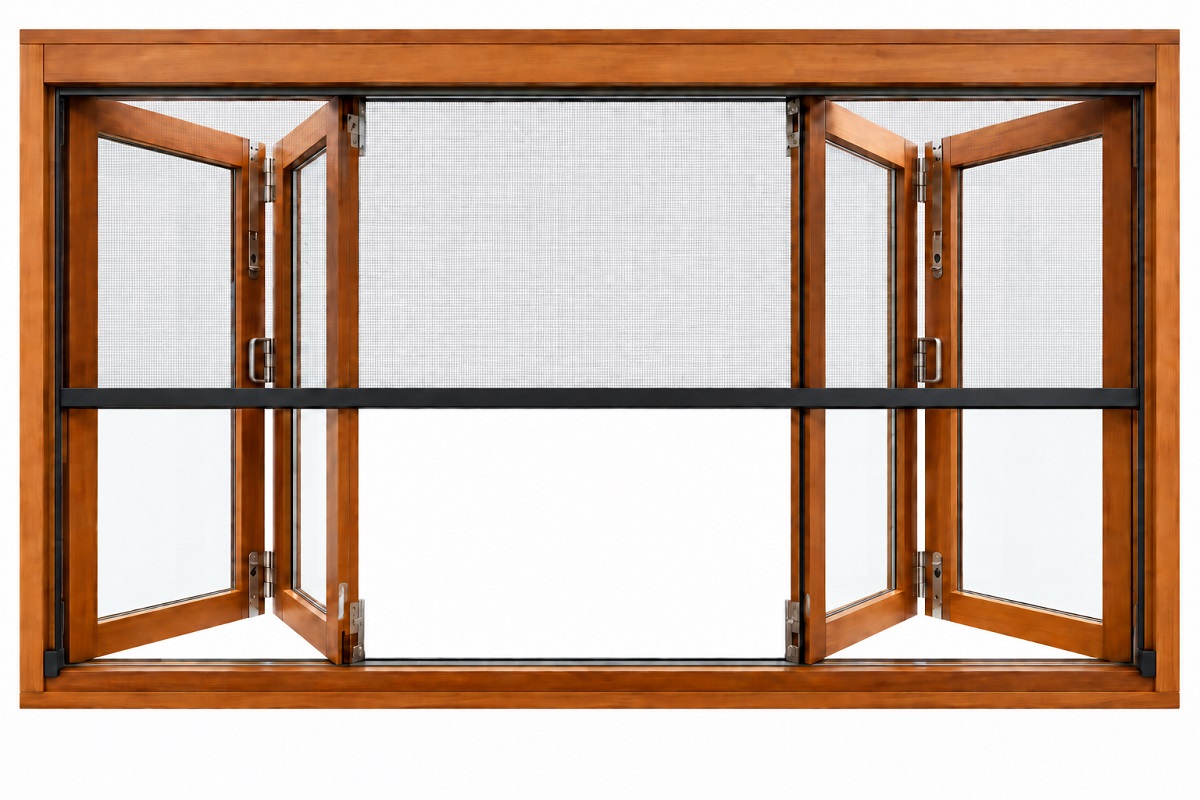

  • Option of Centor roll down blind incorporated in the frame.
  • Panels open externally, resulting in an extremely tight seal when closed.
  • Can be supplied without a sill where necessary.
maximum sizes image

Maximum opening: 1500mm high x 3000mm wide.

Features and Specifications:

  • Frames assembled with zinc coated screws using the latest European technology.
  • 170mm wide Merbau sills.
  • 140mm x 38mm jambs.
  • Sash stiles at 60mm x 38mm.
  • Maximum sash weight of 20 kgs.

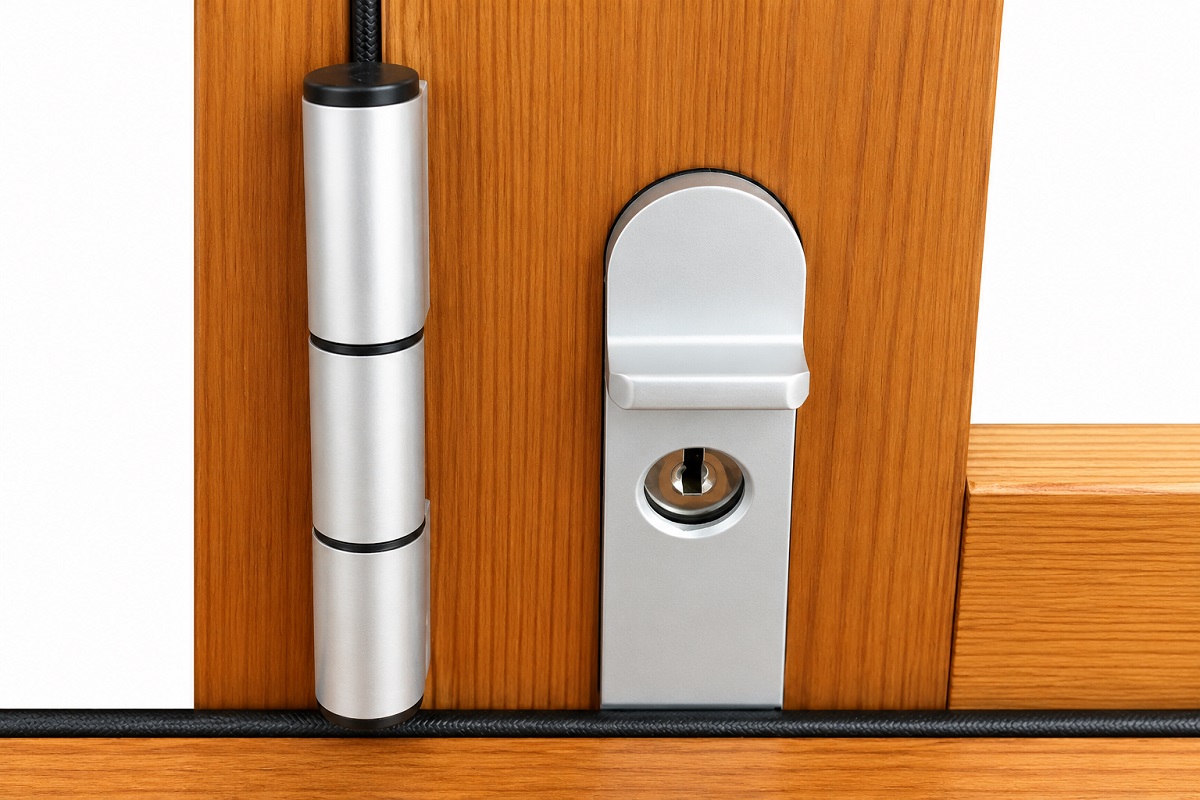

  • Keyed drop bolts fitted to the bottom of sashes as standard.

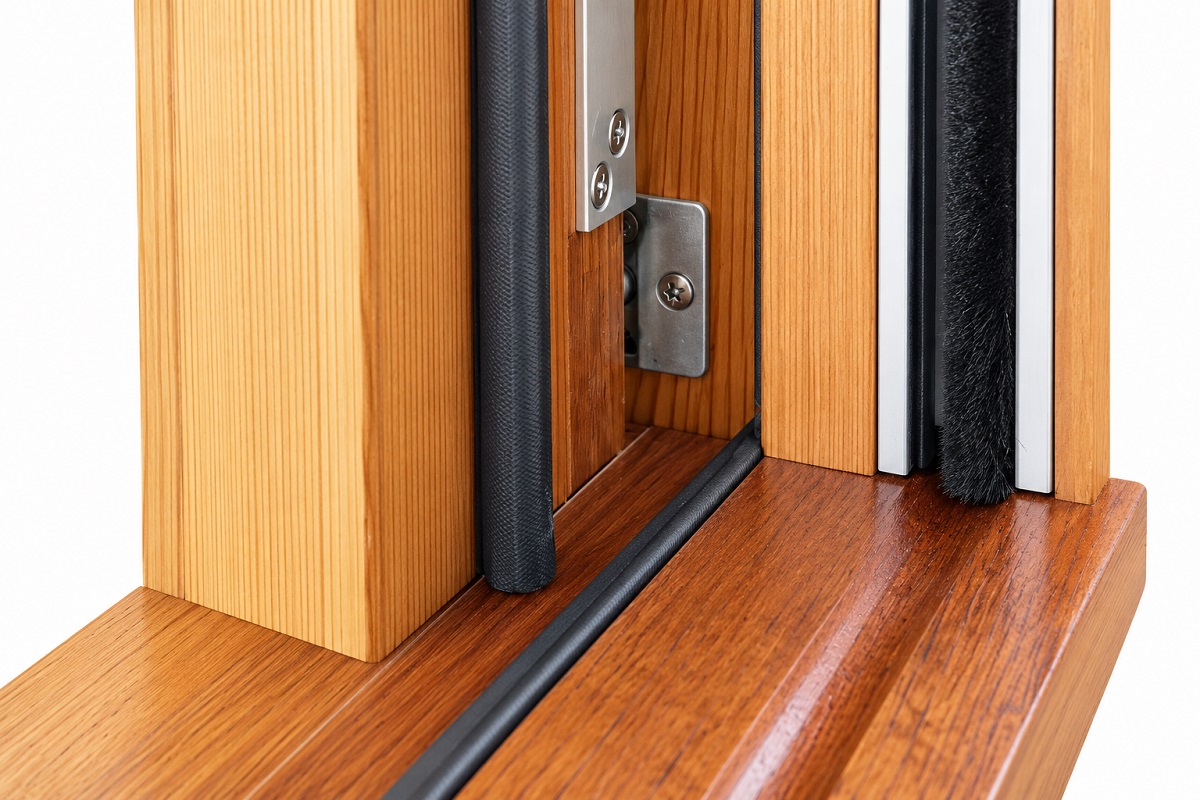

  • Superior weather seals to internal rebates and sash to sash joins.
  • Heavier sections provide increased structural strength, stability and aesthetic beauty.
  • Quality surface finish allows your painter to achieve an excellent painted/stained product outcome.

Timber:

materials imagematerials image
