Timber Awning Window

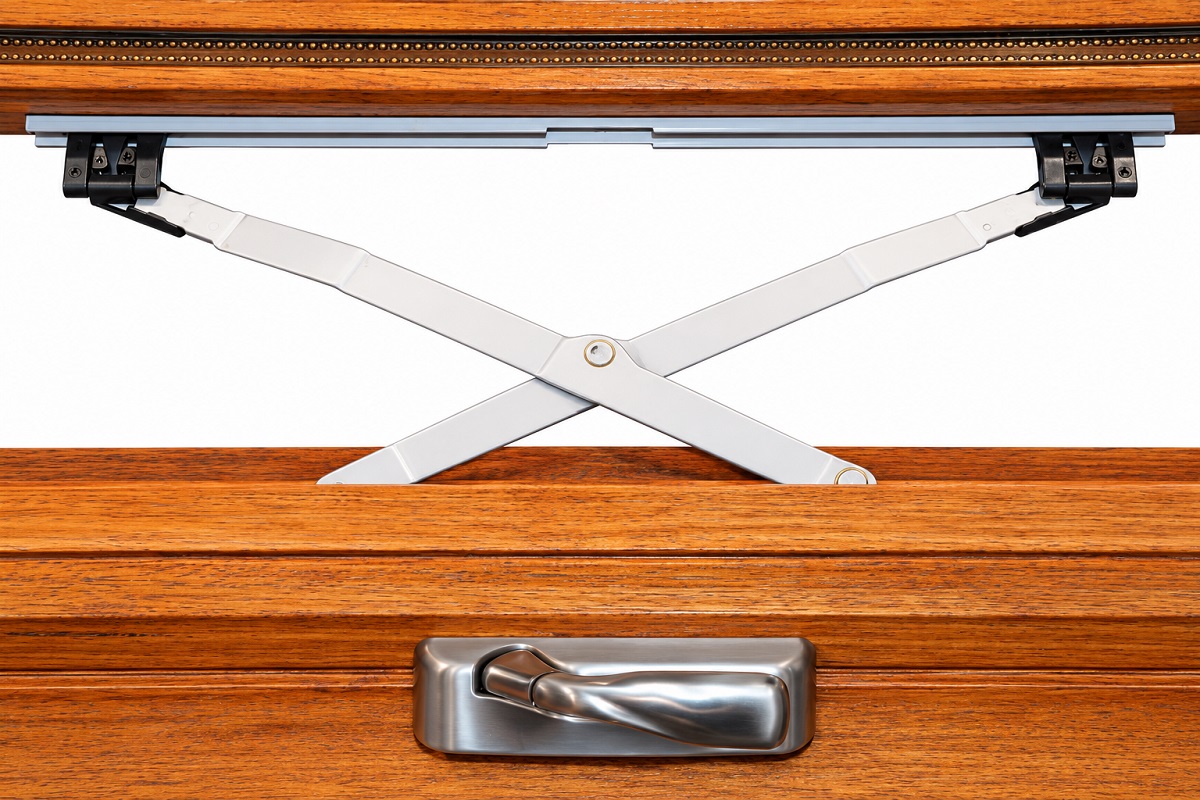

Options of Truth awning operator with folding handle, homeguard sash locks and heavy-duty stays are available.
Heavier sections provide increased structural strength, stability and aesthetic beauty.
Quality surface finish allows your painter to achieve an excellent painted/stained product outcome.

For custom sizes, please consult your Valley Windows representative.

Features and Specifications:

Mortice & Tenon joints to head, jamb & stiles – glued and fitted with zinc-coated screws using the latest European technology.
168mm x 45mm Merbau sills.
140mm x 38mm jambs, mullions and transoms.
60mm x 38mm or optional 60mm x 44mm sash rails.
Whitco lockable keyed winder as standard.
Superior weather seals to internal sash rebates.
Aluminium or optional timber insect screens to the inside of the awning windows.
An optional 22mm double-glazed unit is available, which allows for a larger air gap.
Whitco mechanisms can be all keyed alike and locked in any open position.
Using the Truth mechanism, sash locks and concealed snubbers provide security, preventing bowing of sash rails and increasing the negative air pressure rating.
Sash compression seals prevent air and water infiltration.

Timber:

Timber Awning Window Features

Joinery Features

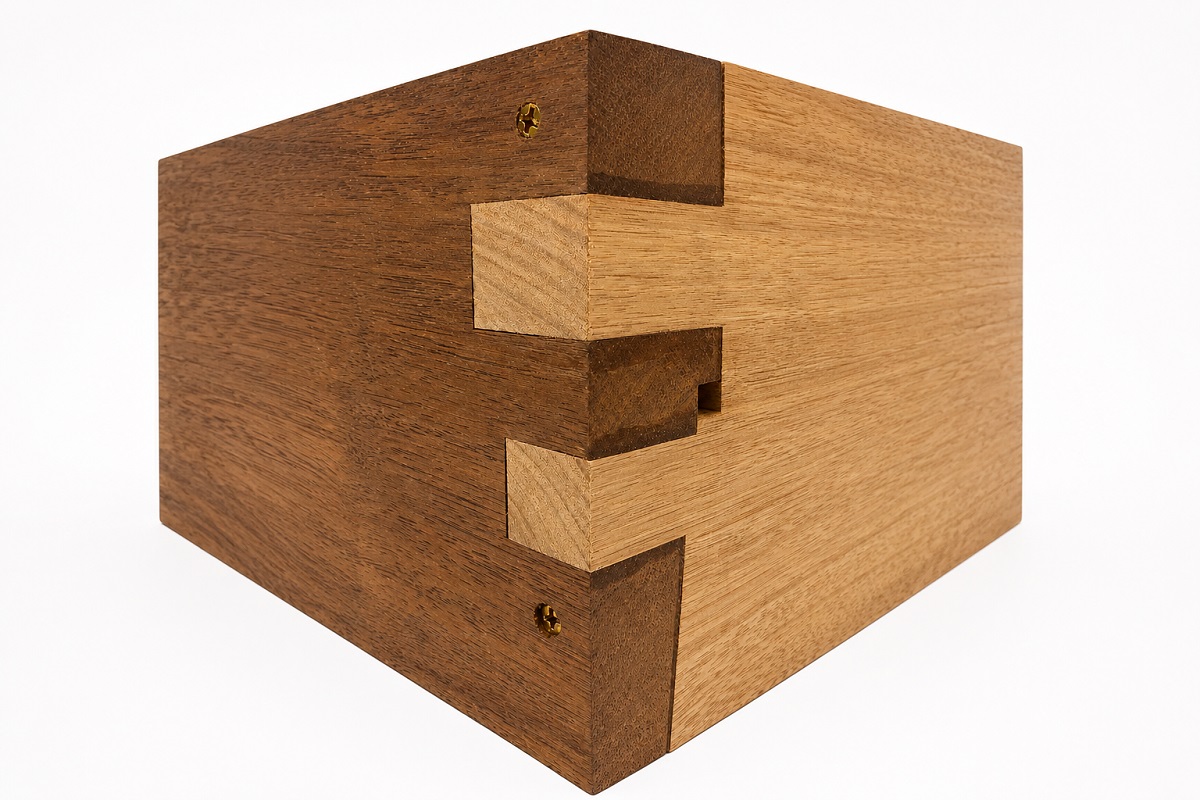

Mortice and Tenon Joints

Mortice & Tenon joints to head, jamb & stiles – glued and fitted with zinc-coated screws using the latest European technology

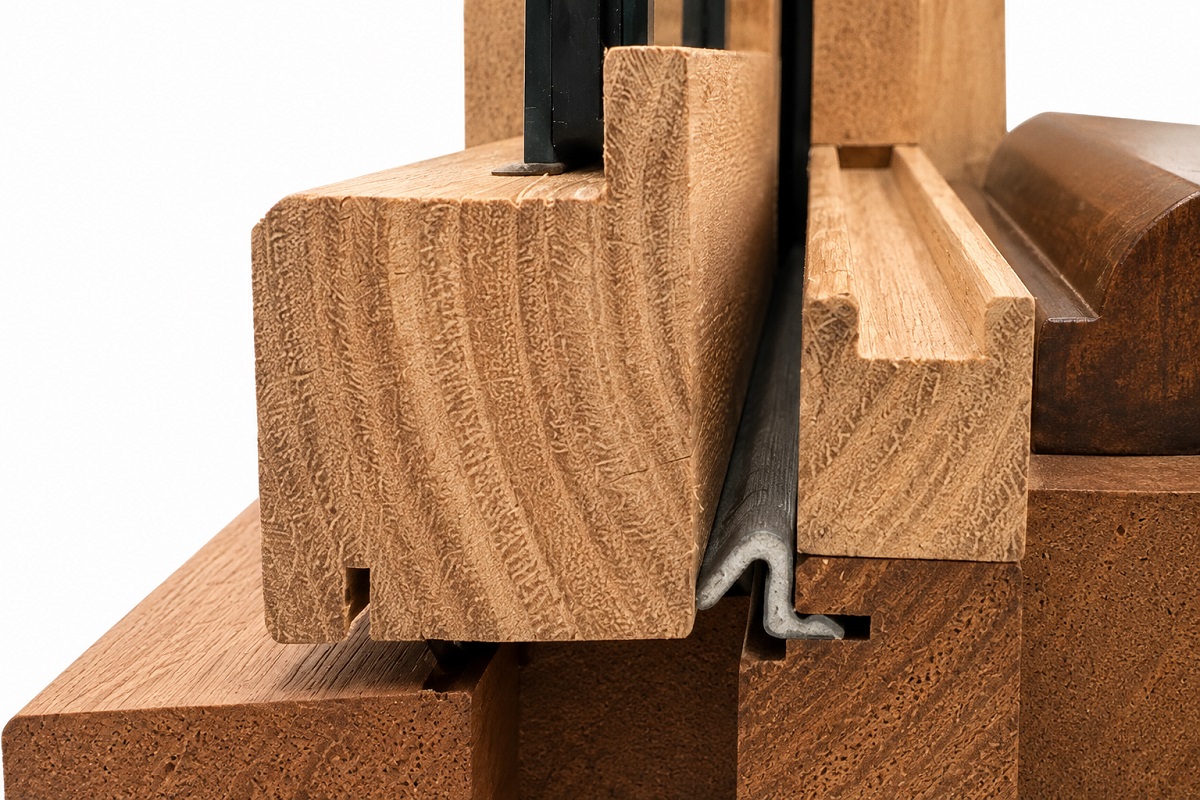

COMPRESSION SEALS

Superior weather seals to internal sash rebates reducing air leakage and increasing water penetration resistance. Simply removed and replaced for ease of painting.
