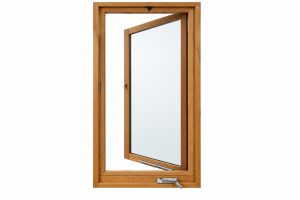

Timber Casement Window

  • Timber casement window open outward in a rendered concrete wall exterior
  • Double timber casement windows in corrugated iron cladding, exterior view
  • Interior view of multiple timber casement windows with black hardware overlooking rural landscape
energy efficiency rating
  • Heavy duty corrosion resistant stays.
  • Sashes open 90degrees maximising air flow and easy cleaning from inside.
  • Sash locks and concealed snubbers provide security; prevent bowing of sash rails and increases negative air pressure rating.
Timber Casement Window sizes

For custom sizes, please consult your Valley Windows representative.

Features and Specifications:

  • Mortice & Tenon joints to head, jamb & stiles – glued and fitted with zinc coated screws using the latest European technology.
  • 168mm x 45mm Merbau sills.
  • 140mm x 38mm jambs, mullions and transoms.
  • Solid timber sections – no finger joins.
  • Superior weather seals to internal sash rebates.
  • Aluminium or optional timber insect screens to the inside of the casement windows.
  • Heavier sections provides increased structural strength, stability and aesthetic beauty.
  • Quality surface finish allows your painter to achieve an excellent painted/stained product outcome.
  • Folding handle avoids interference from window dressings.
  • Sash compression seals prevent air and water infiltration.

Timber:

materials imagematerials image

Timber Casement Window Features

Joinery Features

Timber Casement Window sizes
Mortice and Tenon Joints
Mortice & Tenon joints to head, jamb & stiles – glued and fitted with zinc-coated screws using the latest European technology
Timber Casement Window sizes
COMPRESSION SEALS
Superior weather seals to internal sash rebates reducing air leakage and increasing water penetration resistance. Simply removed and replaced for ease of painting.
Timber Casement Window sizes

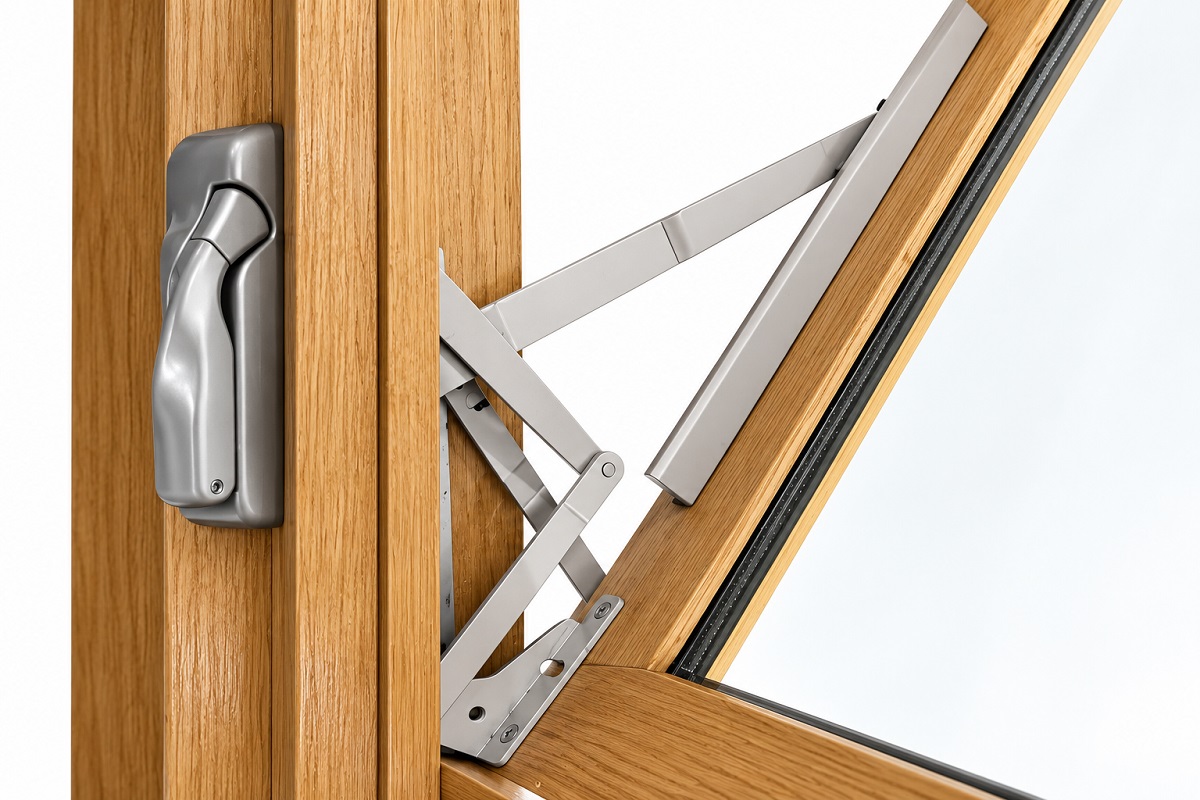

Truth Hardware
Truth winder and casement stay, 90 degree opening, optional stainless steel for coastal application
Timber Casement Window sizes

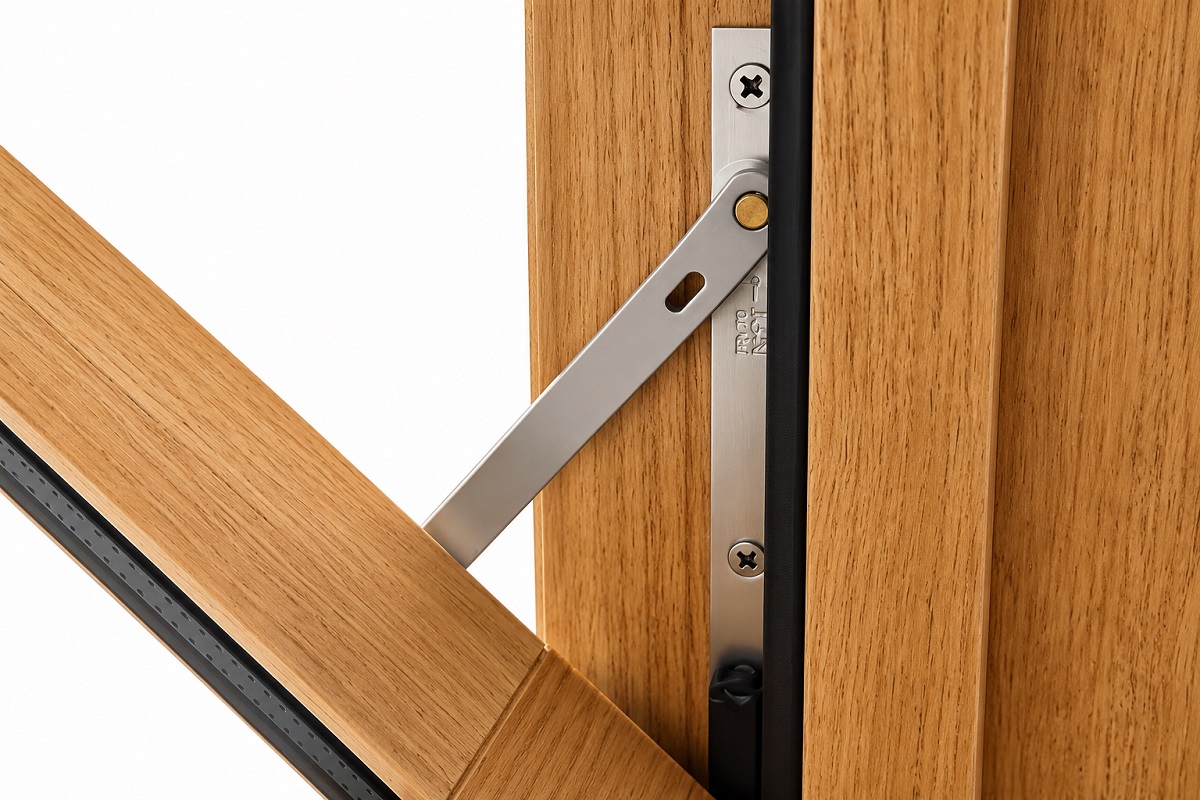

Truth Hardware
Top stay, 90 degree opening, optional stainless steel for coastal application
Timber Casement Window sizes

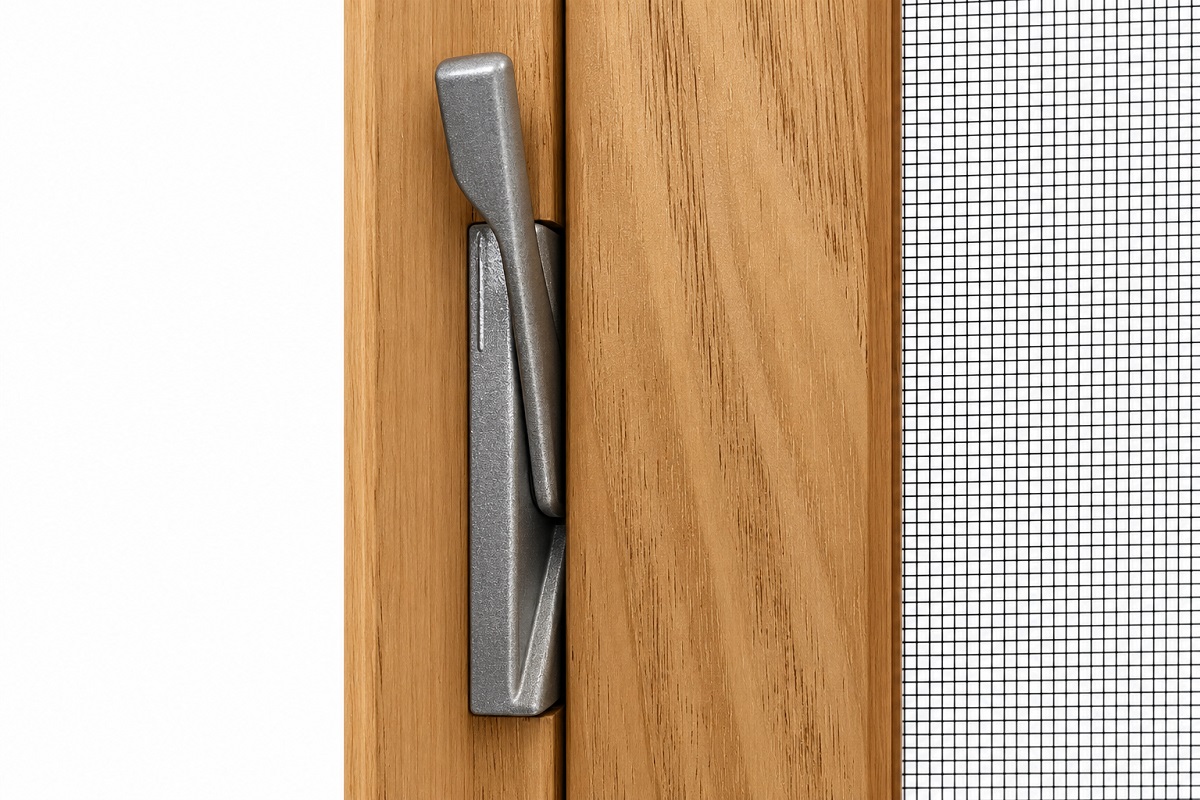

Truth Homeguard Sash Lock
Improves air tightness and weather sealing, increased security
Timber Casement Window sizes
Aluminium Insect Screen
Aluminium Insect Screen with option of fibreglass or stainless steel mesh
Timber Casement Window sizes
Timber Insect Screen
Timber Insect Screen with option of fibreglass or stainless steel mesh
Timber Casement Window sizes
External Individual Pane Colonial Bar
Optional individual pane colonial bar - external view
Timber Casement Window sizes
Internal Individual Pane Colonial Bar
Optional individual pane colonial bar - internal view
Timber Casement Window sizes
External Single Pane Stick On Colonial Bar
Optional single pane stick on colonial bar - external view
