Australian Quality StandardAluminium Louvre Window – CS Range
Experience the beauty of optimal, adjustable ventilation with our new CS Range Louvre Window. Designed to provide maximum airflow while maintaining a sleek, narrow profile that doesn’t intrude into your living spaces or walkways.
Engineered for performance and durability, our CS Range Louvre Windows are crafted to meet Australian standards, achieving wind ratings of N1 – N3 and water resistance up to 300 Pa. Featuring the reliable 152mm Breezway™ system with 6mm toughened single-glazed gallery inserts, these windows offer a practical and stylish ventilation solution.
The CS Range Louvre Window offers exceptional versatility in installation, with customisable reveal types and depths to suit various building materials and architectural styles. Controlled by a low-profile aluminium handle, which can be positioned on the left or right interior frame, and featuring colour-matched hardware, these windows are both functional and aesthetically cohesive. Standard inclusion of extruded flyscreens adds to the practicality. Speak with our experts to explore how these high-performance louvre windows can be tailored to your specific needs and project, even coupled with other CS Range products for a unified design.
* Some limitations may apply. Please discuss with your Valley Windows Consultant.
Features and Specifications:
- Maximum Ventilation: Designed to provide optimal airflow for comfortable living spaces.
- Narrow Profile: Features a slim design that minimises protrusion into interior areas and walkways.
- Breezway™ System: Incorporates the reliable 152mm Breezway™ System for efficient louvre operation.

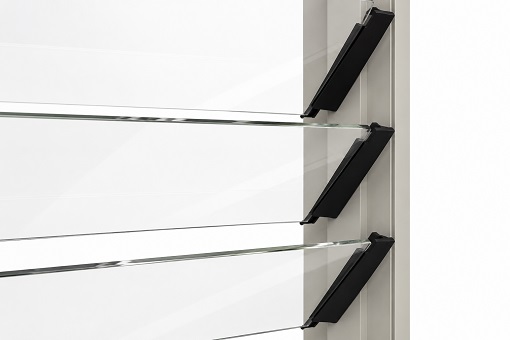

- Toughened Single Glazing: Utilises 6mm toughened single-glazed gallery inserts for durability and safety.

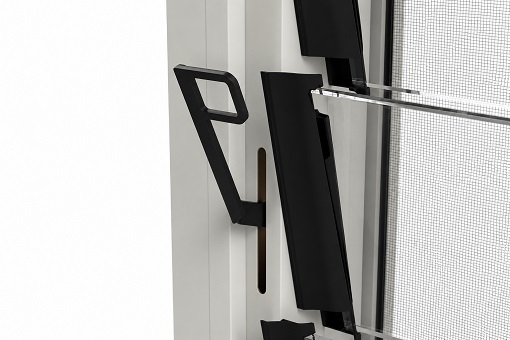

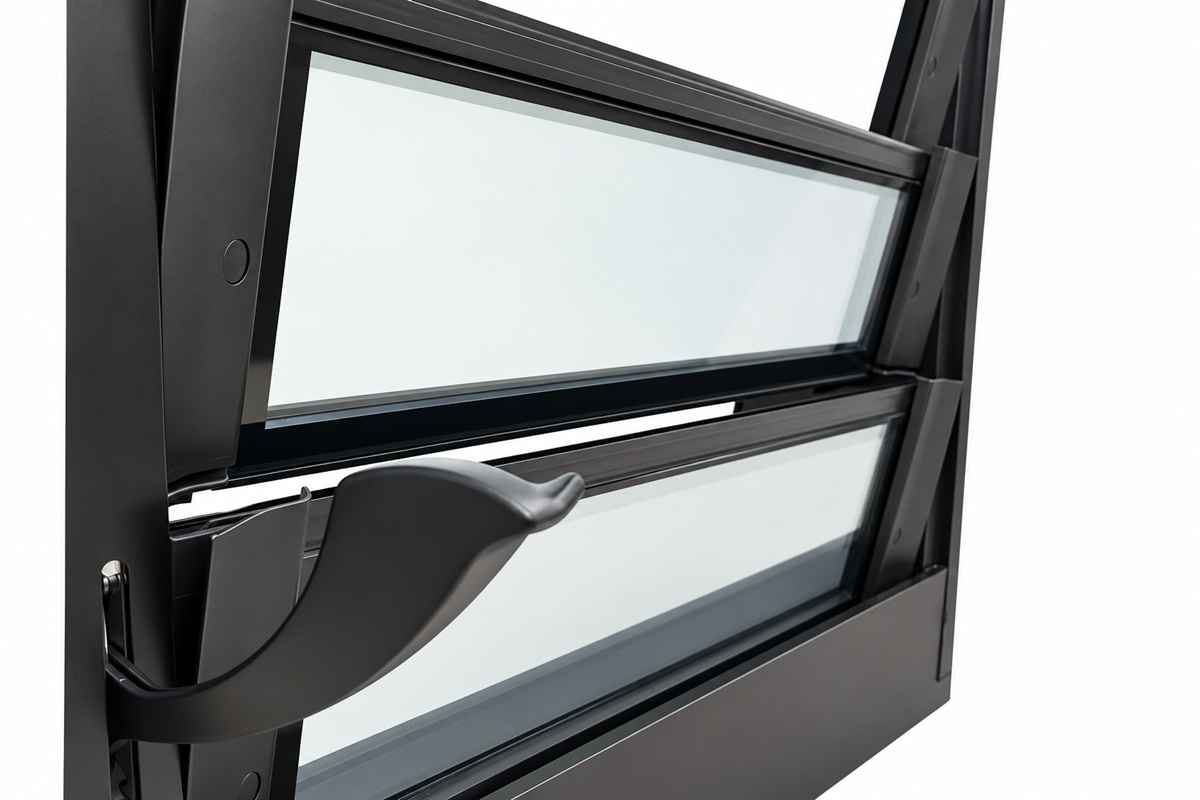

- Low Profile Handle: Controlled by a sleek aluminium handle that can be fitted on either the left or right interior frame.
- Colour-Matched Hardware: Clips and handle hardware are finished to match the selected powder coat frame colour.

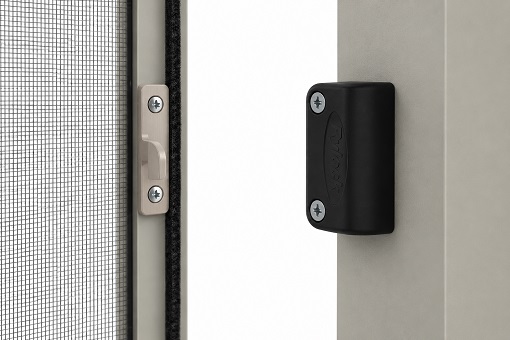

- Standard Flyscreens: Extruded flyscreens are included as a standard feature for insect protection.
- Powder Coated Frames: Frames powder coated in a selection of 30 standard colours and textures, tested for durability by the CSIRO.

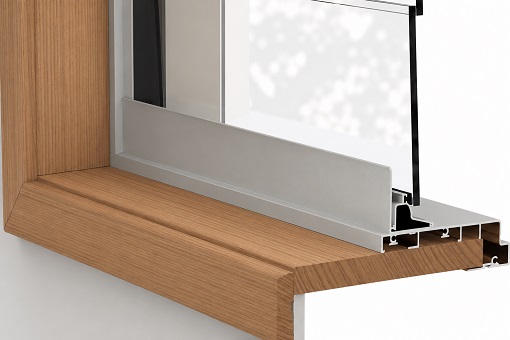

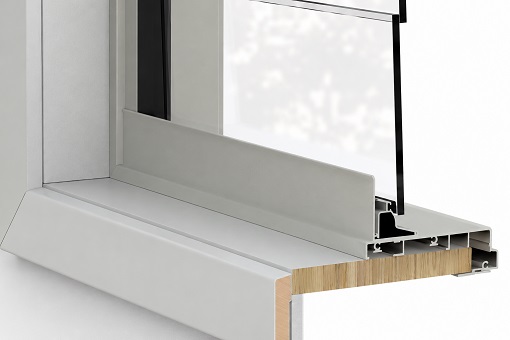

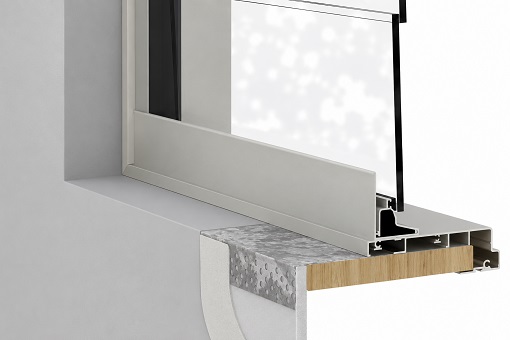

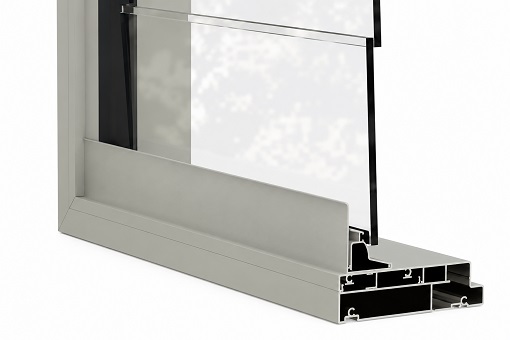

- Customisable Reveals: Reveal type and depth can be customised (primed timber, hardwood, plaster offset, reveal equaliser) to suit various wall constructions and architectural styles.

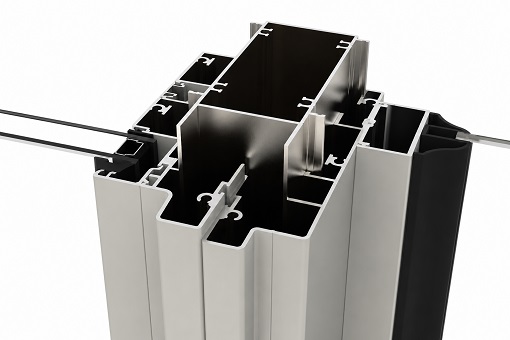

- Coupling Options: Can be coupled with other CS Range products (with a 125mm depth) for integrated design solutions.
