Australian Quality StandardTimber Casement Window – Full Height
- Heavy Duty hinges to suit double glazing weight.
- Duel home guard sash locks applied above and below the operator handle as standard for security and a tight weather seal.
- Sashes open 350mm maximising air flow and easy cleaning from inside.
For custom sizes, please consult your Valley Windows representative.
Features and Specifications:
- Mortice & Tenon joints to head, jamb & stiles – glued and fitted with zinc coated screws using the latest European technology.
- 168mm x 45mm Merbau sills.
- 140mm x 38mm jambs, mullions and transoms.
- Superior weather seals to internal sash rebates.
- Aluminium or optional timber insect screens to the inside of the windows.
- Heavier sections provides increased structural strength, stability and aesthetic beauty.
- Quality surface finish allows your painter to achieve an excellent painted/stained product outcome.
- Folding handle avoids interference from window dressings.
- Sash locks and concealed snubbers provide security; prevent bowing of sash rails and increases negative air pressure rating.
- Sash compression seals prevent air and water infiltration.
Timber Casement Window Full Height
Joinery Features
Mortice and Tenon Joints
Mortice & Tenon joints to head, jamb & stiles – glued and fitted with zinc-coated screws using the latest European technology
COMPRESSION SEALS
Superior weather seals to internal sash rebates reducing air leakage and increasing water penetration resistance. Simply removed and replaced for ease of painting.
Truth Hardware
Truth winder and full height casement hardware
Truth Homeguard Sash Lock
Improves air tightness and weather sealing, increased security

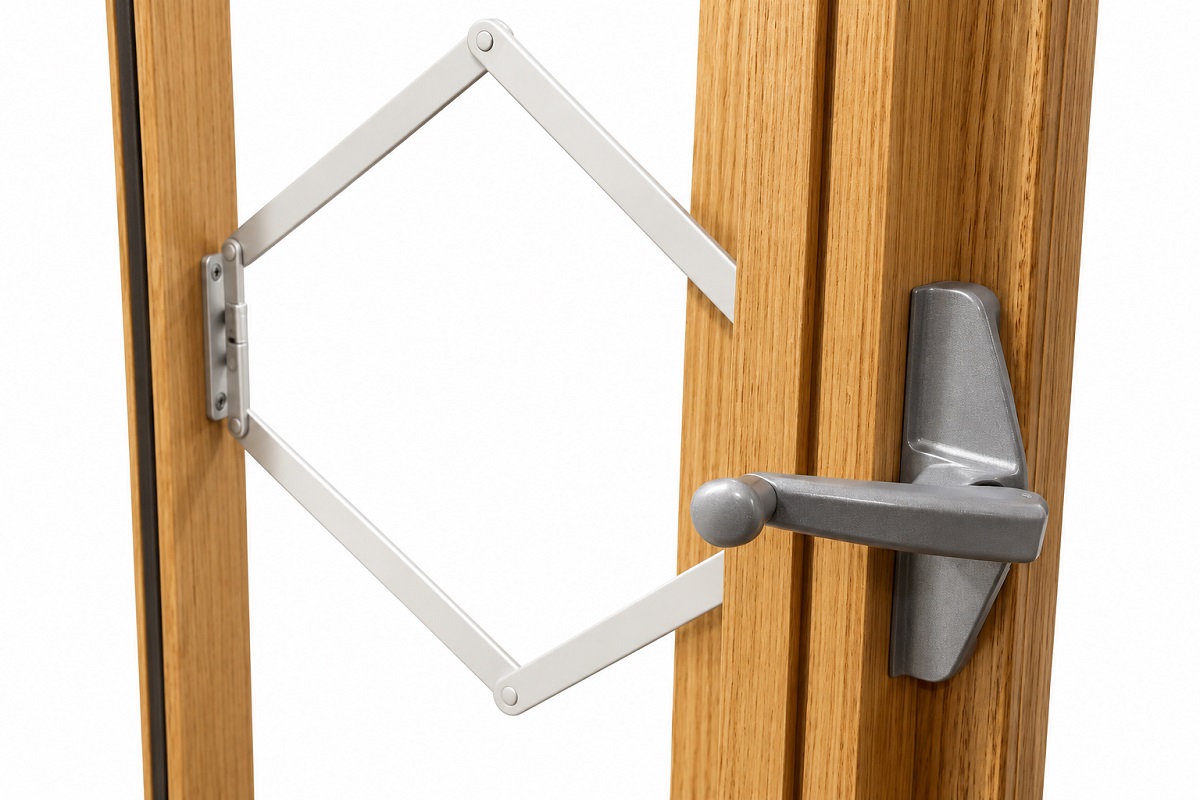

Truth Hardware
Full height casement stays fitted to top and bottom of sashes

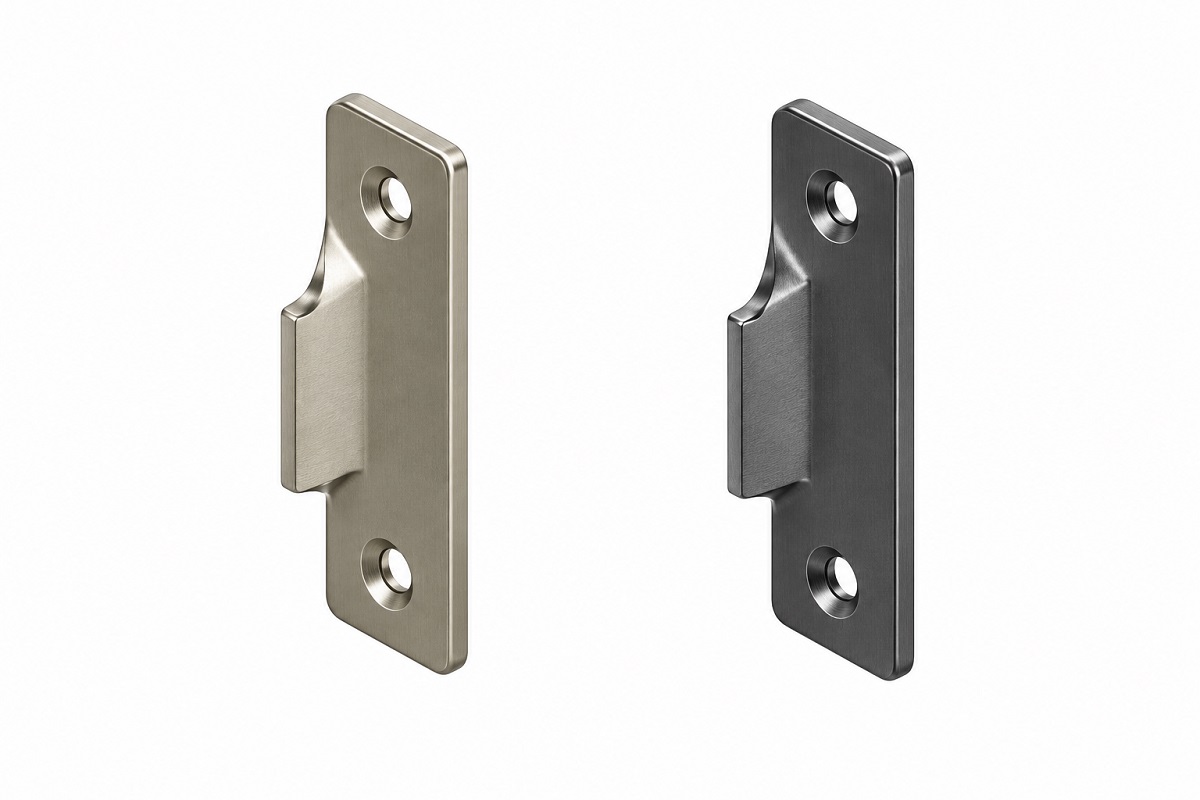

Concealed Snubbers
Fitted to hinged side of opening sash to pull sash tight into seals and increase security
Aluminium Insect Screen
Aluminium Insect Screen with option of fibreglass or stainless steel mesh
Timber Insect Screen
Timber Insect Screen with option of fibreglass or stainless steel mesh
External Individual Pane Colonial Bar
Optional individual pane colonial bar - external view
Internal Individual Pane Colonial Bar
Optional individual pane colonial bar - internal view
External Single Pane Stick On Colonial Bar
Optional single pane stick on colonial bar - external view
