Aluminium Max lite Windows – CS Range

Experience the beauty of expansive, uninterrupted views with our new CS Range Max Lite Window. Designed to flood your interiors with natural light, this window system creates a striking architectural statement while enhancing your connection to the outdoors.

Engineered for performance and durability, our CS Range Max Lite Windows are crafted to meet Australian standards, including AS 2047 for air and water infiltration. Personalise your windows with a diverse selection of glazing options, colours, and finishes to perfectly complement your home’s design and enhance its energy efficiency.

The CS Range Max Lite Window offers exceptional versatility, accommodating custom raked heads and butt joint styles to suit unique architectural requirements. With our expert guidance, you can create a bespoke window solution that maximises light, enhances your home’s aesthetic, and exceeds your expectations.

Max Product Height

6000mm*

Max Product Width

6000mm*

Glazing Capacity

32mm - 36.76mm

Wind Rating

N1 - N3

Air Infiltration

0.1 L/s.m²

Water Resistance

600 Pa

* Some limitations may apply. Please discuss with your Valley Windows Consultant.

Product Sheet

Technical Details

Features and Specifications:

Customisable Design: Custom Architectural Designs: Available in diverse configurations, including custom raked heads and butt joint styles, to seamlessly integrate with your home’s architecture.*
Expansive Glazing Area: Maximise natural light with large, uninterrupted glass panels, up to 6m².*
Structural Customisation: Wide range of structural members for unique, tailored designs.
Seamless Integration: Designed to integrate with other CS Range products for cohesive architectural solutions.
Australian Standards Compliance: Glazing adheres to AS 1288 Glass in Buildings for safety and quality assurance.
Enhanced Noise Reduction: Engineered to minimise external noise, creating a tranquil indoor environment.
Customizable Reveal Options: Adaptable reveal types and depths to accommodate various building materials.
Concealed Fixing System: Streamlined installation and simplified maintenance with concealed fixing pockets.
Durable, Premium Finishes: Powder-coated frames in a wide array of colours and textures, rigorously tested by CSIRO for longevity.
Bespoke Project Solutions: Manufactured to meet specific site conditions and project requirements.

Aluminium:

Max Lite CS Range Product Features

Product Features

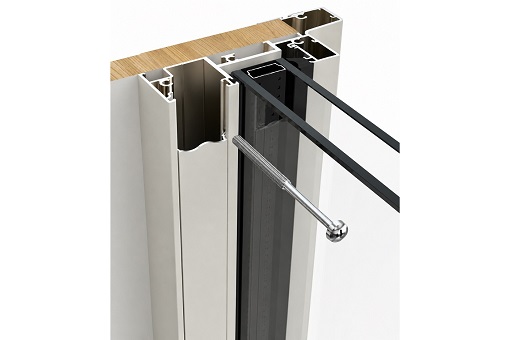

Concealed Fixing Pocket

Concealed Fixing Pocket allows the window to be secured via the temporary removal of a product infill.

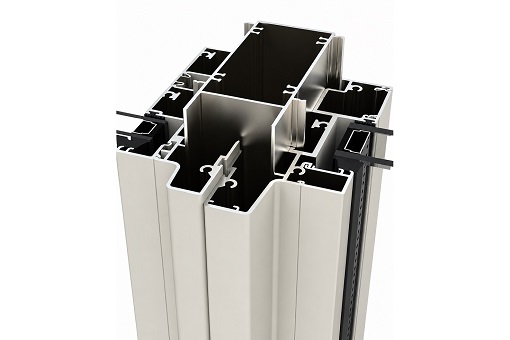

Commercial Series Coupling Bar

The Commercial Series Coupling Bar allows multiple products with a 125mm depth to be joined.

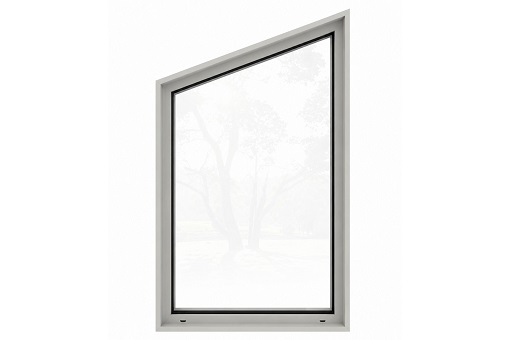

Custom Raked Head

Custom Raked Head windows, in 3, 4 or 5-sided configurations enhance the home's architectural style.

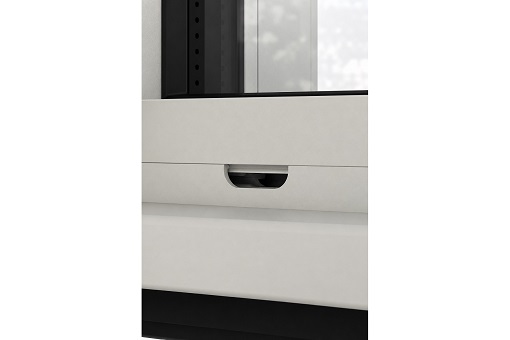

Weep Holes

Weep Holes expel excess water for compliance with AS2047 water penetration resistance.

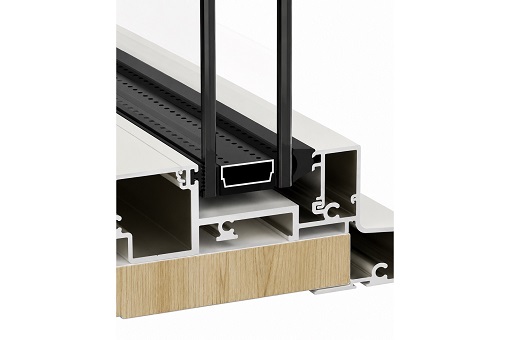

Insulated Glass Units

IGU standard specification is Grade A Safety Toughened Low-e Double Glazing (Argon Fill).

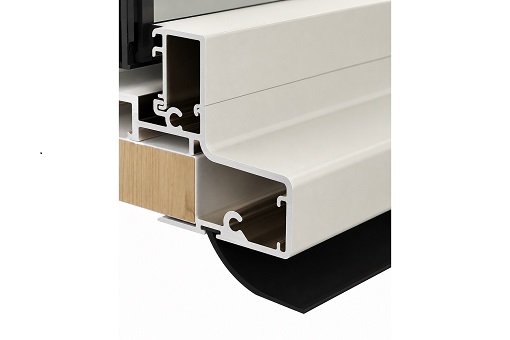

Sill Flap

Optional Sill Flap expels water from the building for Brick Veneer and Double Brick applications.

Reveal Type

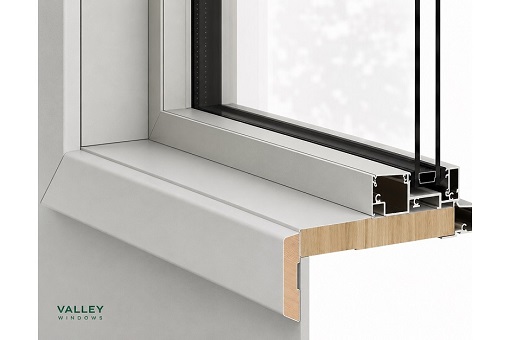

Primed Timber Reveal

A pre-primed in-line timber reveal for ease of installation is ready for painting. Architrave supplied by others.

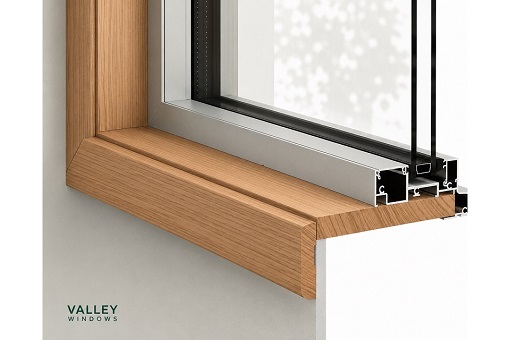

Hardwood Reveal

Select grade hardwood in-line timber reveal for ease of installation is ready to varnish. Architrave supplied by others.

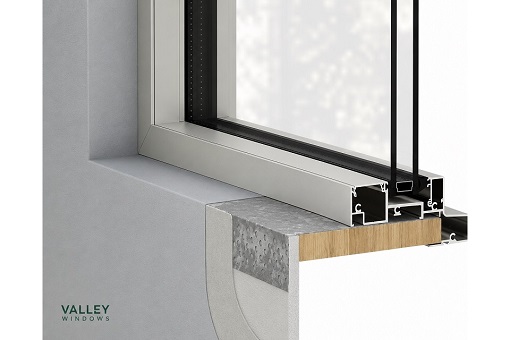

Plaster Reveal Offset

Common in modern housing construction products are fitted with a 1.6mm spacer to aid installation of the EzyReveal™ system.

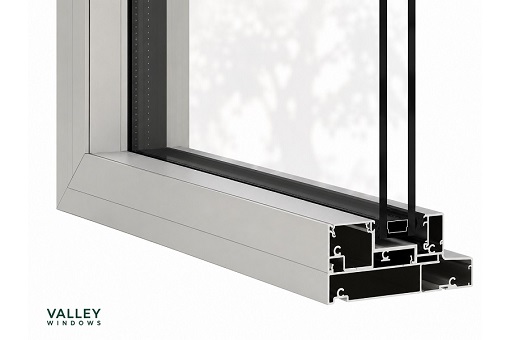

Reveal Equaliser

A versatile solution which provides a powder coated finish to the full height of the internal surface of the frame with concealed fixing pocket.
