Aluminium Casement Windows – CS Range

  • Building Evolution project – aluminium casement windows, view 3
  • Building Evolution project – aluminium casement windows, view 2
  • Building Evolution project – aluminium casement windows, view 1
  • Aluminium Casement Window CS Range – exterior view
  • Aluminium Casement Window CS Range – installation example
  • CS Range casement window compression locks detail
  • CS Range casement window hinges detail
  • CS Range casement window Truth winder hardware
energy efficiency rating

Designed for living. Crafted for life. Our CS Range Casement Windows combine performance, flexibility, and timeless design. The side-hinged sash is supported by durable stainless steel friction stays, allowing the window to open wide and capture natural airflow with ease.

Engineered for Australian conditions, these windows incorporate dual seals and precision hardware systems to deliver reliable weather resistance and meet Australian Standard AS 2047 for air and water infiltration.

Every project is different, which is why our casement windows are available with a broad range of glass options, colours, and finishes—giving you the freedom to achieve the right balance of performance and style for your home.

Clean lines, powder-coated frames, and integrated flyscreens create a refined finish that suits both modern and traditional architecture. Our experienced team works with you to tailor each window to your specific site requirements, delivering a solution that enhances comfort, energy efficiency, and long-term value.

Casement windows are ideal for living areas and bedrooms where ventilation is key. Their design allows them to catch passing breezes and direct fresh air into the home, making them a practical and stylish choice for everyday living.

Max Product Height
6000mm*
Max Product Width
6000mm*
Max Sash Height
3050mm*
Max Sash Width
2750mm*

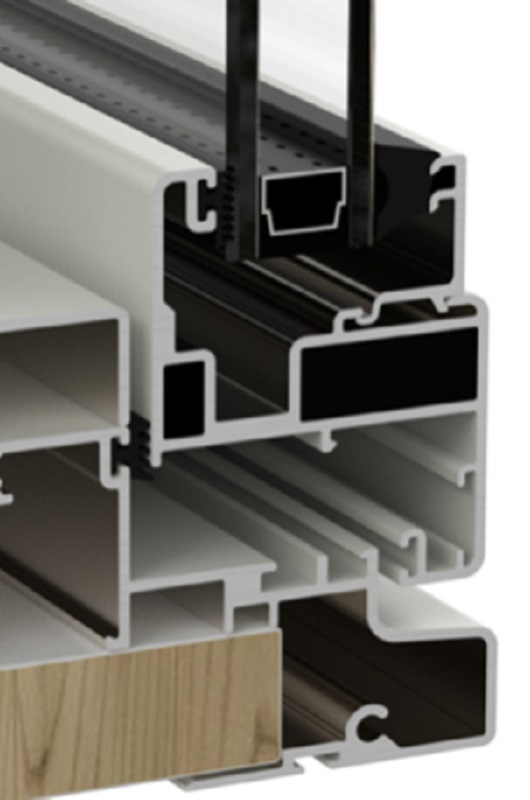

Glazing Capacity
4mm - 24.76mm
Wind Rating
N1 - N3
Air Infiltration
0.1 L/s.m2
Water Resistance
600 Pa

* Some limitations may apply. Please discuss with your Valley Windows Consultant.

Product Sheet
Technical Details

Features and Specifications:

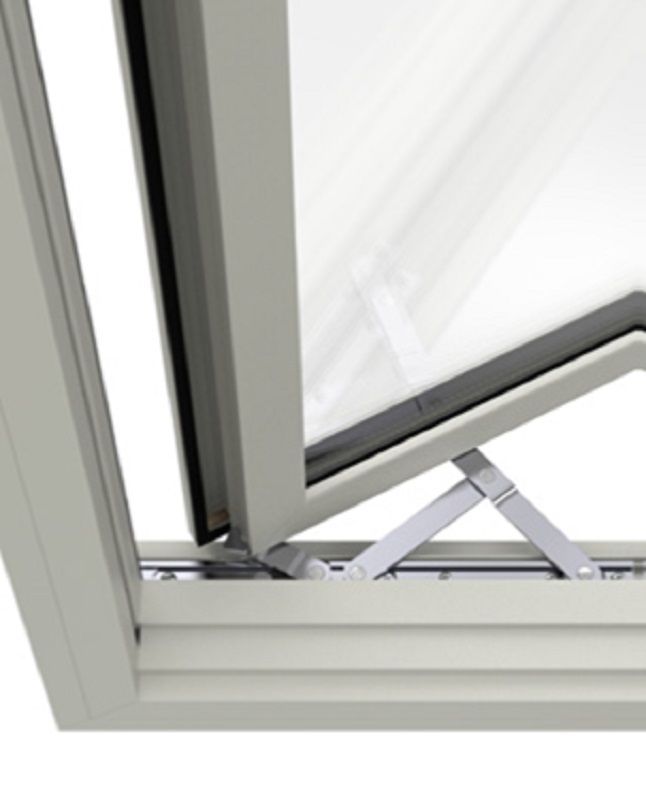

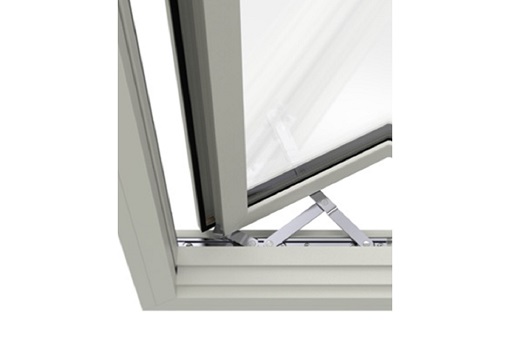

  • Stainless steel stays allow the sash to be opened to specific angles for optimal cross-breeze ventilation.

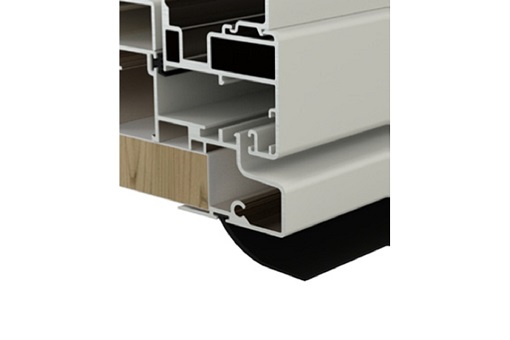

  • Dual sash seals and adjustable snubbers ensure resistance against air and water infiltration.

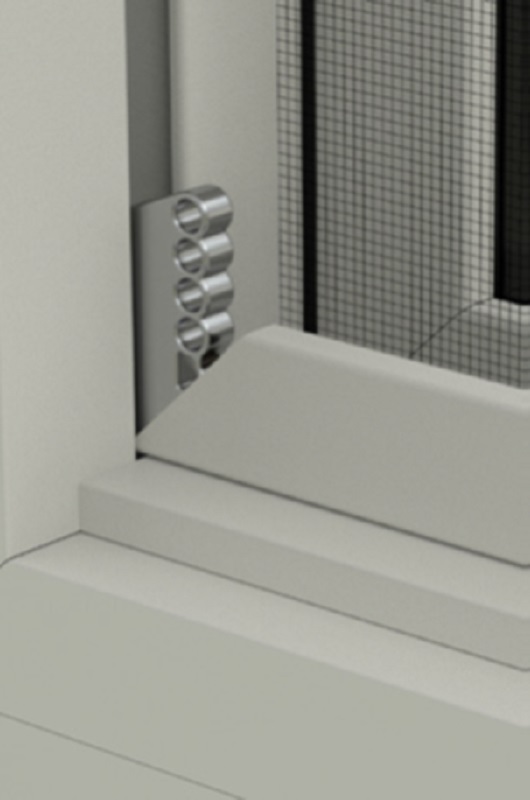

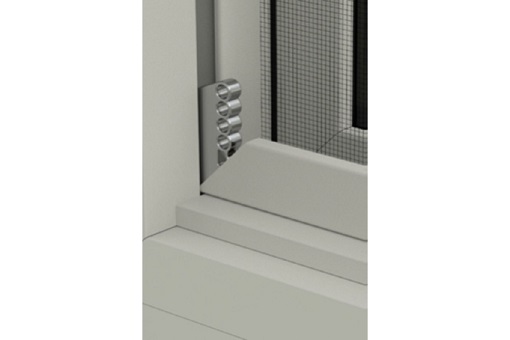

  • Extruded flyscreens are a standard inclusion and are fitted to the powder-coated interior frame of the product.

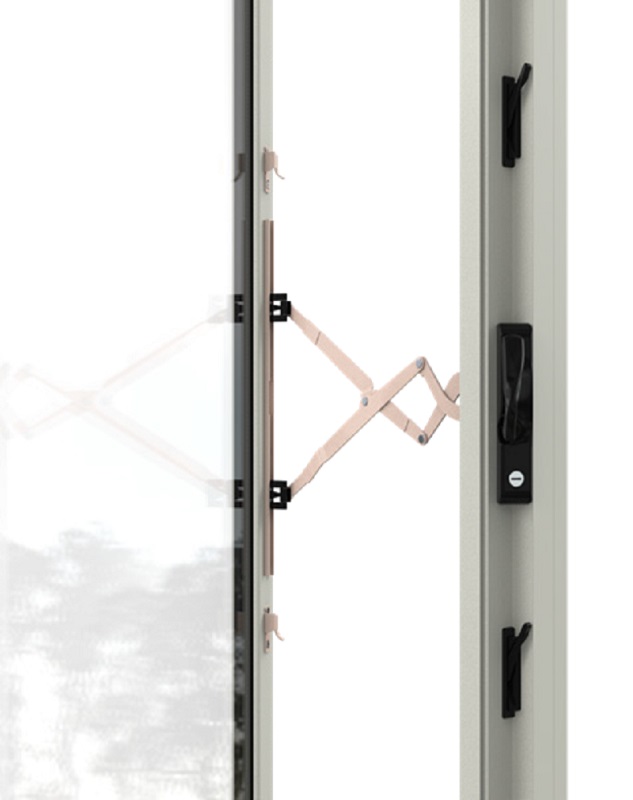

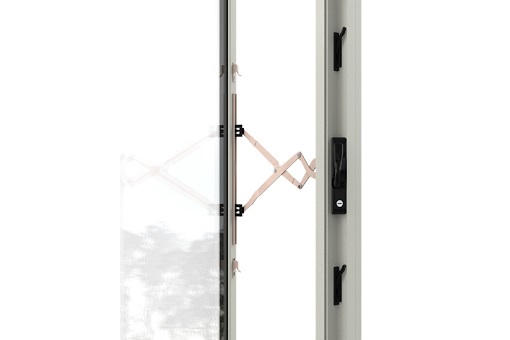

  • Precise control of the sash opening through the superior dual arm scissor action of the Truth Bar Operator
  • Dual arm scissor action offers smooth and efficient operation.
  • Available in a variety of colours and textures, all tested by the CSIRO for durability.
  • It meets Australian standards for windows and external glazed doors and is glazed in accordance with AS 1288 Glass in Buildings.
  • Valley Windows custom manufactures products to meet specific site conditions and requirements.
