Aluminium Hinged Door – CS Range

Experience the perfect blend of elegance, practicality, and resilience in our CS Hinged Doors. Designed to enhance any home, these doors offer versatility and sophistication, seamlessly connecting indoor and outdoor spaces.

Crafted for lasting performance, these doors feature robust construction and high-quality materials. Choose from single-panel styles with premium handle options or elegant French door configurations. Enjoy the flexibility of inward or outward opening. Quality seals ensure resistance to air and water infiltration, meeting stringent Australian standards.

Tailor your doors to your exact specifications with a wide array of customisation options. Select from clear, obscure, or tinted glass, with the option to upgrade to Low-e glass for enhanced energy efficiency. Hardware choices include a selection of premium handles, available in black, white, and satin-brushed stainless steel finishes. You can also opt for a no-handle version for ultimate third-party customisation. With a range of frame colours and configurations, you can create a truly unique and stylish entrance. Installation options include rebated sills for zero threshold access, ensuring accessibility for all.

(Note: Premium handle options are not compatible with French Doors.)

Max Product Height
3050mm*
Max Product Width
1250mm*
Glazing Capacity
4mm - 25mm
Wind Rating
N1 - N3
Air Infiltration
1.2—2.1 L/s.m²
Water Resistance
150—200 Pa

* Some limitations may apply. Please discuss with your Valley Windows Consultant.

Features and Specifications:

  • Versatile Configurations: Available in both single-panel and elegant French door styles to suit various architectural designs and opening requirements.
  • Flexible Operation: Offers the choice of inward or outward opening to maximise space and functionality.
  • Durable Construction: Built with robust, high-quality materials designed to withstand the Australian climate, ensuring long-lasting performance and resistance to wear.
  • Enhanced Weather Protection: Features quality seals to effectively resist air and water infiltration, meeting stringent Australian standards for performance.
  • Energy Efficient Glazing: Provides options for clear, obscure, or tinted glass, with the ability to upgrade to Low-e glass for superior thermal insulation and reduced energy consumption.
  • Premium Hardware Options: Offers a selection of high-quality handles in contemporary designs and various lengths, available in stylish black, white, and satin-brushed stainless steel finishes.
  • A no-handle option is also available for custom third-party handle integration.
  • Customizable Aesthetics: Provides a wide range of frame colour choices to perfectly complement the unique style of any home.
  • Accessible Design: Includes the option of rebated sills for a seamless, zero-threshold transition, enhancing accessibility for all users.
  • Secure Design: Incorporates a multi-point locking system for enhanced security and peace of mind.
  • Adaptable Configurations: Suitable for various entrance types, including single entrance doors.

Aluminium Hinged Doors CS Range product Features

Product Features

feature image

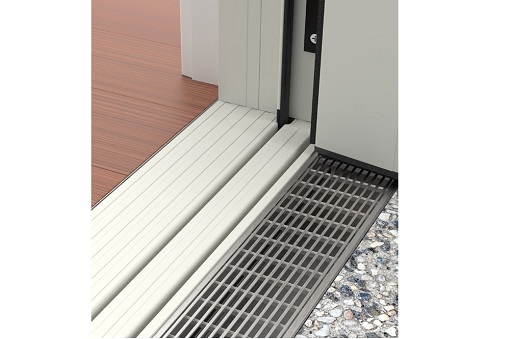

50mm Sill
50mm Sill can be rebated for "zero threshold" installation, making it an ideal assisted living solution.
feature image
Heavy duty Hinges
Heavy duty Hinges allow the panel to rotate 180 0, when the frame is aligned with the exterior of the building.
feature image
Frame Only Option
Frame Only Option accommodates a timber door panel, fitted with Austyle stainless steel hinges. Refer Technical Details in download above for timber door hanging detail.
feature image

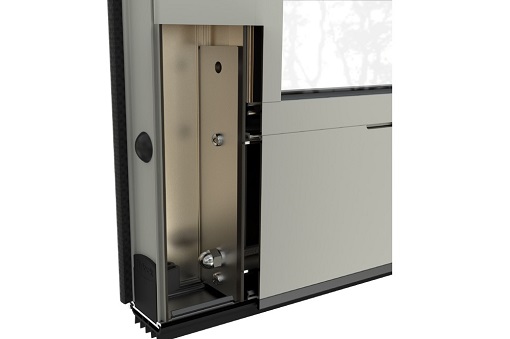

Stainless steel Fixing Plates
Stainless steel Fixing Plates safeguard the panel's squareness and durability at the largest of sizes.
feature image

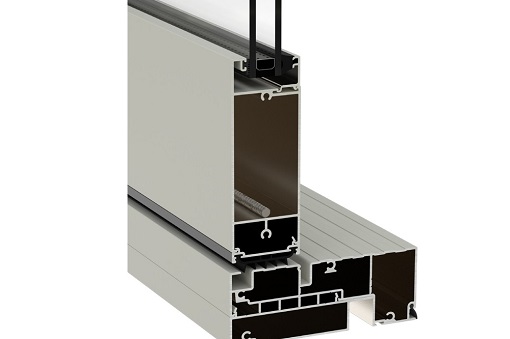

Insulated Glass Units
IGU standard specification is Grade A Safety Toughened Low-e Double Glazing (Argon Fill).
feature image

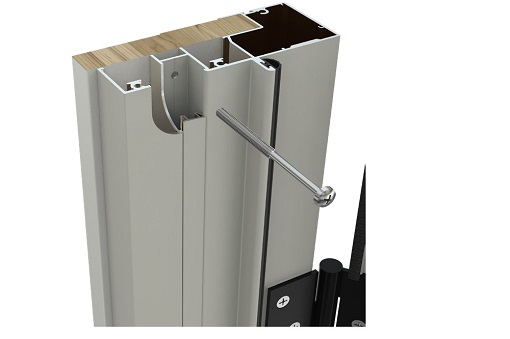

Concealed Fixing Pocket
Concealed Fixing Pocket (Open- Out Door Only) allows fixing via the temporary removal of an infill.

Hardware Options

feature image

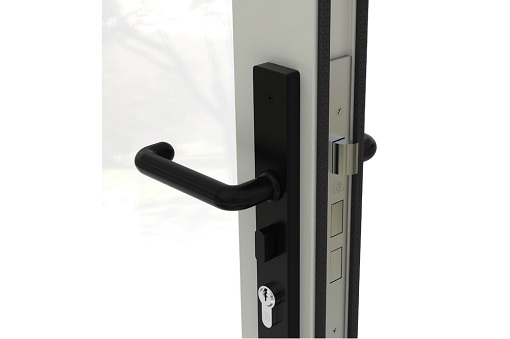

DDA Compliant Handle with myLock Latch
The Austyle™ DDA Compliant Handle is compliant with AS1428 Design for Access and Mobility as an ideal assisted living solution, with a snib and key lock function.
feature image

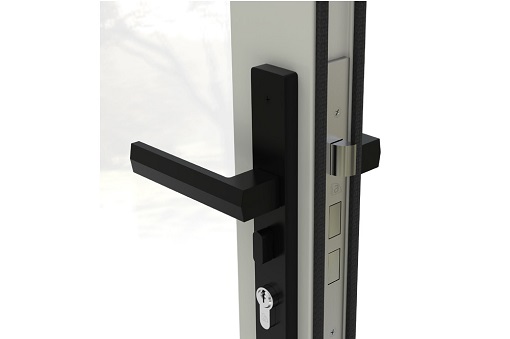

Tapered Handle with myLock Latch
The Austyle™ Tapered Handle is an architectural lever with stainless steel body, with a snib and key lock function.
feature image

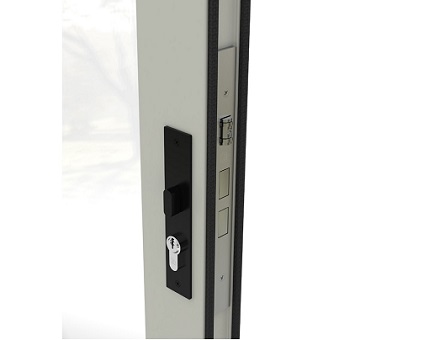

Snib Only Option with myLock Roller Catch
feature image

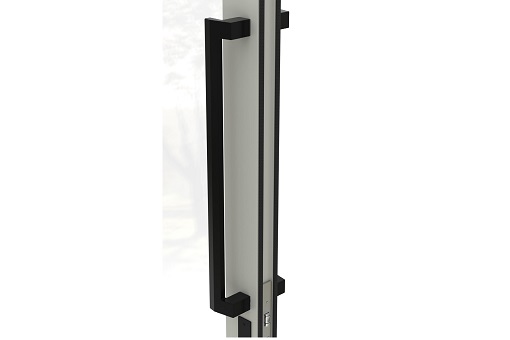

450mm D Handle with myLock Roller Catch
The Austyle™ 450mm D Handle features a bold, architectural, offset, tapered design. This option includes an adjustable spring tension roller catch with Austyle™ myLock system, (with snib), in a stainless steel body and cylinder drivenbolt. The myLock roller catch is also available as a snib only option, to allow for third-party custom handles.

Reveal Type

feature image

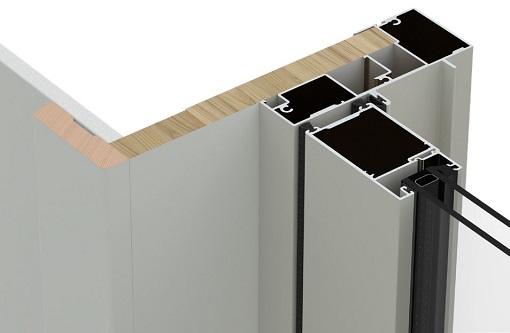

Primed Timber Reveal
A pre-primed in-line timber reveal for ease of installation is ready for painting. Architrave supplied by others.
feature image

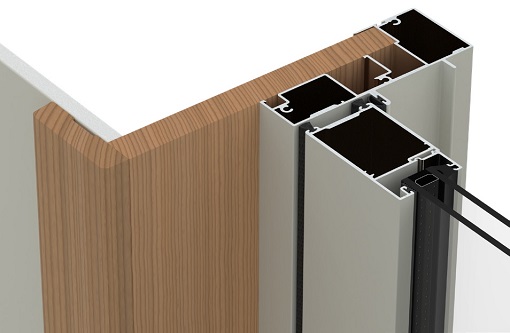

Hardwood Reveal
Select grade hardwood in-line timber reveal for ease of installation is ready to varnish. Architrave supplied by others.
feature image

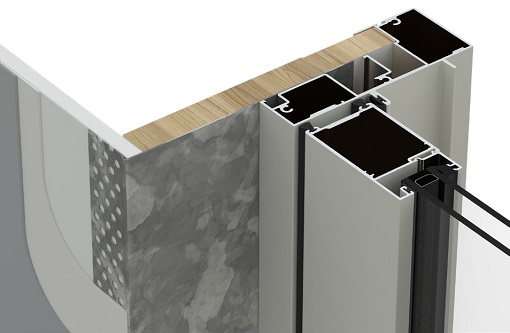

Plaster Reveal Offset
Common in modern housing construction products are fitted with a 1.6mm spacer to aid installation of the EzyReveal™ system.
feature image

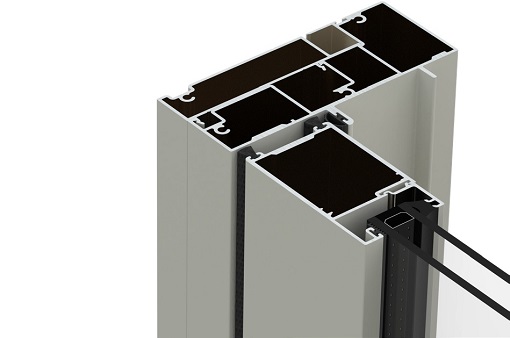

Reveal Equaliser
A versatile solution which provides a powder coated finish to the full height o f the internal surface of the frame with concealed fixing pocket.
